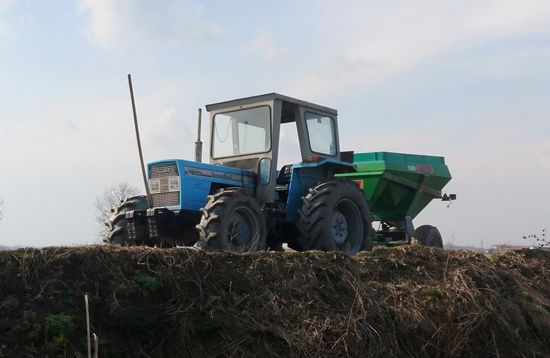

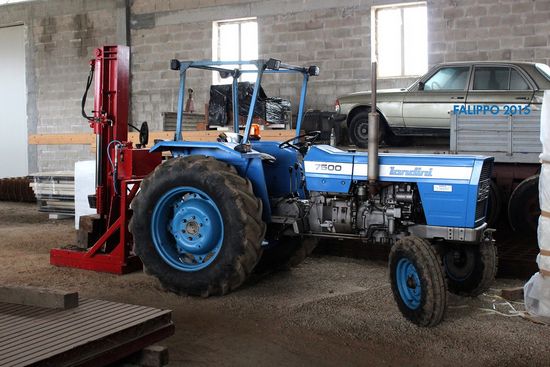

Landini 7500

Production: 1973 - 1983

Production
Manufacturer:	Landini
Type:	Utility tractor

Landini 7500 Power
Engine:	70 hp 52.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	mechanical
hydrostatic power*Optional
Brakes:	dry disc
Cab:	Four-post ROPS. Cab optional.
Transmission:	12-speed

Hydraulics
Pump flow:	7.5 gpm 28.4 lpm

Tractor hitch
Rear Type:	II
Rear lift:	5733 lbs 2600 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/ground (1.375)
1000*Optional

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	235.8 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Power:	70 hp 52.2 kW
Rated RPM:	2200
Torque:	191.8 lb-ft 260.1 Nm
Torque RPM:	1200
Starter volts:	12

Transmission
Gears:	12 forward and 4 reverse
Clutch:	279.4mm dry dsc

Dimensions
2WD Wheelbase:	88.2 inches 224 cm
Length:	142.9 inches 362 cm
2WD Height (hood):	56.3 inches 143 cm
Height (ROPS):	91.7 inches 232 cm
2WD Weight:	5490 lbs 2490 kg
4WD Weight:	5998 lbs 2720 kg
Front tread:	55.1 to 74.8 inches 139 to 189 cm
Rear tread:	51.2 to 78.7 inches 130 to 199 cm
