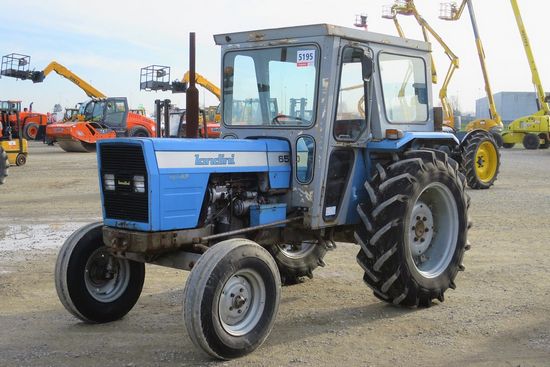

Landini 6500

Production: 1973 - 1983

Production
Manufacturer:	Landini
Type:	Utility tractor

Landini 6500 Power
Engine:	65 hp 48.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Differential lock:	rear standard
Steering:	mechanical
hydrostatic power
Brakes:	dry disc
Cab:	Four-post ROPS. Cab optional.
Transmission:	12-speed

Hydraulics
Total flow:	7.5 gpm 28.4 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	5,072 lbs 2300 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/ground
1000 (optional)

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	235.8 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Power:	65 hp 48.5 kW
Rated RPM:	2200
Torque:	166.0 lb-ft 225.1 Nm
Torque RPM:	1500

Transmission
Gears:	12 forward and 4 reverse

Dimensions
2WD Wheelbase:	87 inches 220 cm
Length:	142.5 inches 361 cm
Height (hood):	55.1 inches 139 cm
Height (ROPS):	90.9 inches 230 cm
Weight:	4,878 lbs 2212 kg (2WD)
5,490 lbs 2490 kg (4WD)
2WD Clearance (front axle):	18.5 inches 46 cm
