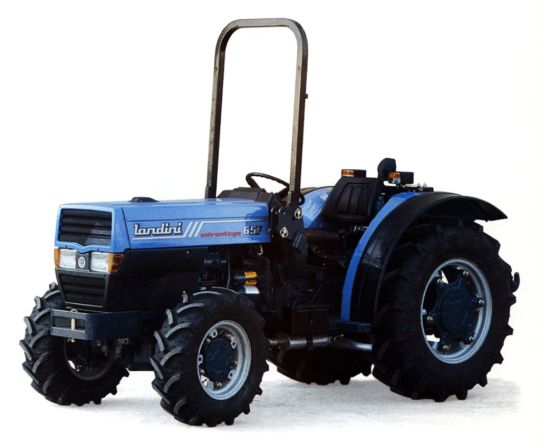

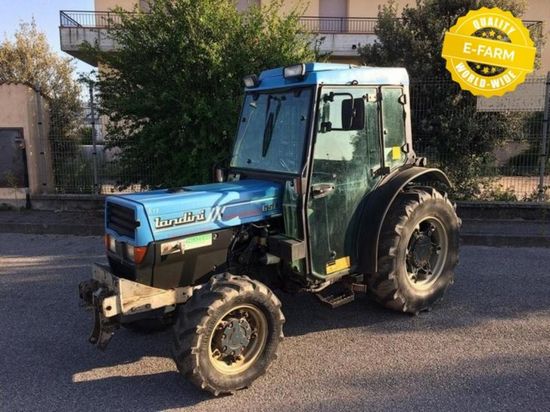

Landini Advantage 65F

Production: 1995 - 2000

Production
Manufacturer:	Landini (a part of Argo)
Type:	Orchard/Vineyard tractor

Variants

low-profile

orchard

wide orchard

vineyard

utility

Landini Advantage 65F Power
Engine:	67 hp 50.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post mid-mount foldable ROPS. Cab optional.
Transmissions:	24-speed creeper with mechanical shuttle
12-speed mechanical shuttle

Hydraulics
Valves:	2
Pump flow:	11.2 gpm 42.4 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750 (1.375)
Engine RPM:	540@1944 750@1934

Electrical
Ground:	negative
Charging system:	Lucas A115
Charging amps:	45
Battery volts:	12

Engine Detail
Perkins 4.236
diesel
4-cylinder
liquid-cooled
Displacement:	236 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Power:	67 hp 50.0 kW
Air cleaner:	dry
Compression:	16:1
Rated RPM:	2200
Torque:	187.3 lb-ft 254.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	81.5 inches 207 cm
4WD Wheelbase:	79.5 inches 201 cm
Length:	135.8 inches 344 cm
Width:	52.4 inches 133 cm
Height (steering wheel):	57.1 inches 145 cm
Height (cab):	88.6 inches 225 cm
Ground clearance:	15 inches 38 cm
2WD Front tread:	42.8 to 58.5 inches 108 to 148 cm
4WD Front tread:	42.8 to 54.7 inches 108 to 138 cm
Rear tread:	38.6 to 60.2 inches 98 to 152 cm
