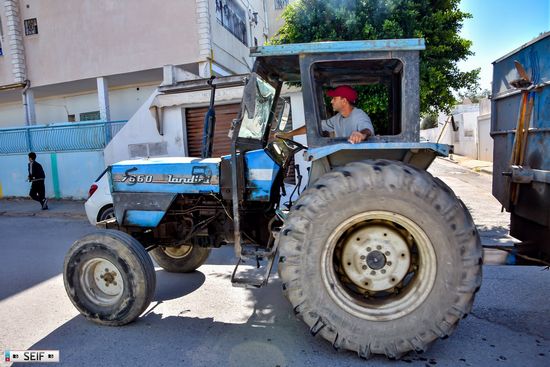

Landini 7860

Production: 1988 - 2000

Production
Manufacturer:	Landini
Type:	Utility tractor

Variants
7860:	ROPS
7870:	Cabin

Landini 7860 Power
Engine:	73.5 hp 54.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Four-post ROPS.
Transmission:	12-speed mechanical shuttle

Hydraulics
Pump flow:	9.4 gpm 35.6 lpm

Tractor hitch
Rear lift:	5732 lbs 2600 kg

Power Take-off (PTO)
Rear RPM:	540/750

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	235.8 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Power:	71 hp 52.9 kW
Rated RPM:	2200
Torque:	198.4 lb-ft 269.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Type:	mechanical shuttle
Gears:	12 forward and reverse

Dimensions
2WD Wheelbase:	92.1 inches 233 cm
4WD Wheelbase:	91.2 inches 231 cm
Length:	150 inches 381 cm
Width:	73.6 inches 186 cm
Height (steering wheel):	67.7 inches 171 cm
Height (ROPS):	102 inches 259 cm
2WD Weight:	6370 lbs 2889 kg
4WD Weight:	6850 lbs 3107 kg
