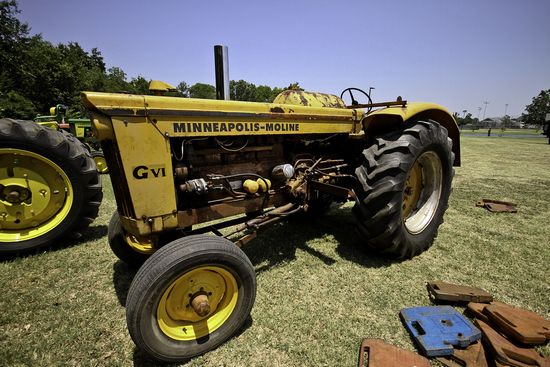

Minneapolis-Moline G-VI

Production: 1959 - 1962

Production
Manufacturer:	Minneapolis-Moline
Type:	Standard-tread tractor
Original price:	$6,500 (1962)

Minneapolis-Moline G-VI Power
Drawbar (claimed):	70 hp 52.2 kW
PTO (claimed):	78 hp 58.2 kW
Drawbar (tested):	69.92 hp 52.1 kW
PTO (tested):	78.49 hp 58.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydraulic power
Brakes:	differential mechanical dry disc
Cab:	Open operator station.
Transmission:	5-speed gear

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540

G-VI Serial Numbers
1959:	16000001 (gas/LP)
1960:	16000877 (gas/LP)
1961:	16001676 (gas/LP)
1962:	16002033 (gas/LP)
Final:	16002352 (gas/LP)
1959:	16200001 (diesel)
1960:	16200806 (diesel)
1961:	16201891 (diesel)
1962:	16202961 (diesel)
Final:	16203235 (diesel)

Engine Detail
Minneapolis-Moline 425-6
LP gas
6-cylinder
liquid-cooled
Displacement:	425.5 ci 7.0 L
Bore/Stroke:	4.25x5.00 inches 108 x 127 mm
Compression:	8.3:1
Rated RPM:	1500
Firing order:	1-5-3-6-2-4
Starter volts:	12
Oil capacity:	15 qts 14.2 L
Coolant capacity:	50 qts 47.3 L

Transmission
Type:	gear
Gears:	5 forward and 1 reverse

Dimensions
Wheelbase:	96.375 inches 244 cm
Length:	150.5 inches 382 cm
Width:	82 inches 208 cm
Height:	79.25 inches 201 cm
Operating weight:	8,335 lbs 3780 kg
Ballasted weight:	12,695 lbs 5758 kg
