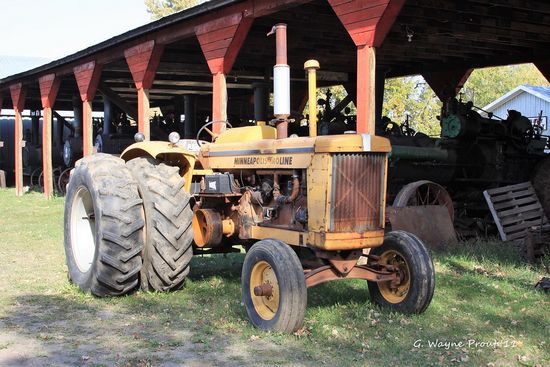

Minneapolis-Moline G705
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | Minneapolis-Moline |
| Type: | Standard-tread tractor |
| Factory: | Hopkins, Minnesota, USA |
| Original price: | $7,000 (1965) |
Variants | |
| 2WD | |
| 4WD |
Minneapolis-Moline G705 Power | |
| Drawbar (claimed): | 90 hp 67.1 kW |
| PTO (claimed): | 101 hp 75.3 kW |
| Drawbar (tested): | 90.80 hp 67.7 kW |
| PTO (tested): | 101.05 hp 75.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power assist |
| Brakes: | differential disc |
| Cab: | Open operator station. Cab optional with available air-conditioning. |
| Transmission: | 5-speed unsynchronized gear |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
G705 Serial Numbers | |
| Location: | Serial number plate on the right side of the Minneapolis-Moline G705 tractor frame, ahead of the operator platform and below the battery tray. |
| 1962: | 23800001 (LP) |
| 1963: | 23800079 (LP) |
| 1964: | 23800591 (LP) |
| 1965: | 23801093 (LP) |
| Final: | 23801223 (LP) |
| 1962: | 23900050 (diesel) |
| 1963: | 23900051 (diesel) |
| 1964: | 23900899 (diesel) |
| 1965: | 23900899 (diesel) |
| Final: | 23902094 (diesel) |
Engine Detail | |
| Minneapolis-Moline | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 504 ci 8.3 L |
| Bore/Stroke: | 4.625x5.00 inches 117 x 127 mm |
| Air cleaner: | oil bath |
| Compression: | 14.8:1 |
| Rated RPM: | 1600 |
| Starter volts: | 12 |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 5 forward and 1 reverse |
| Clutch: | dry disc |
Dimensions | |
| Wheelbase: | 96.2 inches 244 cm |
| Front tread: | 54.25 inches 137 cm |
| Rear tread: | 72.25 inches 183 cm |
