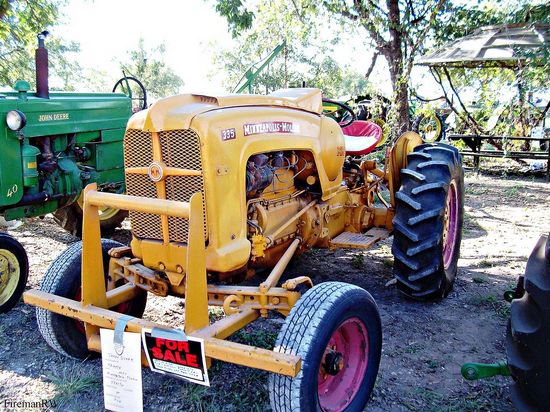

Minneapolis-Moline 335
Contents:
Production | |
| Manufacturer: | Minneapolis-Moline |
| Total built: | 2,500 (utility) |
| 334 (industrial) | |
| 750 (Universal) | |
| Original price: | $2500 (1961) |
Minneapolis-Moline 335 Power | |
| Drawbar (claimed): | 24 hp 17.9 kW |
| PTO (claimed): | 32 hp 23.9 kW |
| Drawbar (tested): | 29.84 hp 22.3 kW |
| Belt (tested): | 33.50 hp 25.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power assist |
| Brakes: | mechanical dry disc |
| Cab: | Open operator station. |
| Transmissions: | 5-speed unsynchronized gear |
| 10-speed partial power shift | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
335 Serial Numbers | |
| Location: | Right side of tractor frame. |
| 1956: | A1P 10400001 (utility) |
| 1957: | A1P 10400102 (utility) |
| 1958: | A1P 10402088 (utility) |
| 1959: | A1P 10402337 (utility) |
| 1960: | A1P 10402490 (utility) |
| 1961: | A1P 10402490 (utility) |
| 1957: | A1W 11300001 (industrial) |
| 1958: | A1W 11300441 (industrial) |
| 1959: | A1W 11300522 (industrial) |
| 1960: | A1W 11300597 (industrial) |
| 1957: | A1 11600001 (universal) |
| 1958: | A1 11600302 (universal) |
| 1959: | A1 11600306 (universal) |
Engine Detail | |
| Minneapolis-Moline 165A | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement: | 165 ci 2.7 L |
| Bore/Stroke: | 3.625x4.00 inches 92 x 102 mm |
| Air cleaner: | oil bath |
| Compression: | 7.35:1 |
| Rated RPM: | 1600 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 6 |
| Coolant capacity: | 11 qts 10.4 L |
Dimensions | |
| Wheelbase: | 79 inches 200 cm |
| Height: | 59 inches 149 cm |
| Weight: | 3,650 lbs 1655 kg |
| Ballasted weight: | 6,095 lbs 2764 kg |
