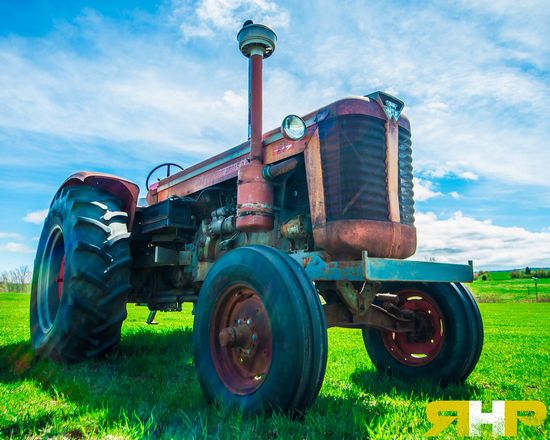

Massey Ferguson 97

Production: 1962 - 1965

Production
Distributor:	Massey Ferguson
Manufacturer:	Minneapolis-Moline
Type:	Standard-tread tractor
Original price:	$6943 (1964 )
The Massey Ferguson 97 was based on the Minneapolis-Moline G705 (2WD) and G706 (4WD).

Massey Ferguson 97 Power
Engine:	108 hp 80.5 kW
PTO (claimed):	101 hp 75.3 kW
Plows:	7

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	bull gear
Brakes:	disc
Cab:	Cab optional.
Transmission:	5-speed gear

Hydraulics
Type:	open center
Pressure:	1000 psi 69.0 bar
Valves:	2
Pump flow:	15 gpm 56.8 lpm

Power Take-off (PTO)
Rear PTO:	live*Optional
Rear RPM:	540

97 Serial Numbers
1962:	25200001 (diesel)
1963:	25200506 (diesel)
1964:	25202005 (diesel)
1965:	25203504 (diesel)
1962:	25300001 (LP-gas)
1963:	25300096 (LP-gas)
1964:	25300397 (LP-gas)
1965:	25300399 (LP-gas)

Engine Detail
Minneapolis-Moline
diesel
6-cylinder
liquid-cooled
Displacement:	504 ci 8.3 L
Bore/Stroke:	4.625x5.00 inches 117 x 127 mm
Power:	108 hp 80.5 kW
Compression:	14.8:1
Rated RPM:	1600
Starter volts:	12
Coolant capacity:	50 qts 47.3 L

Transmission
Type:	gear
Gears:	5 forward and 1 reverse
Clutch:	289mm dry disc

Dimensions
2WD Wheelbase:	96..2 inches 243 cm
4WD Wheelbase:	84.5 inches 214 cm
Operating weight:	8,155 lbs 3699 kg
