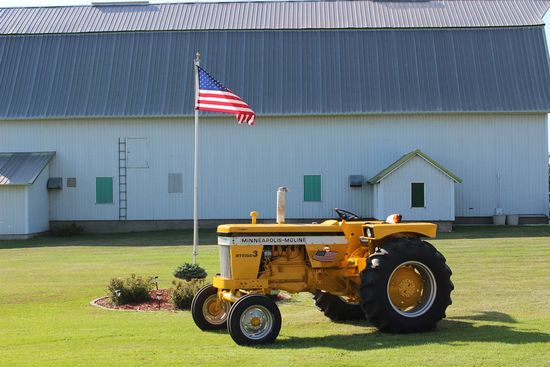

Minneapolis-Moline Jet Star 3
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Minneapolis-Moline |
| Type: | Row-Crop tractor |
| Factory: | Minneapolis, Minnesota, USA |
Minneapolis-Moline Jet Star 3 Power | |
| PTO (claimed): | 44 hp 32.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Steering: | power*Optional |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmissions: | 10-speed two-speed power shift |
| 5-speed gear | |
Tractor hitch | |
| Rear Type: | II |
| Control: | draft control*Optional |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| 1000 (1.375) | |
| Engine RPM: | 540@1525 1000@1750 |
Jet Star 3 Serial Numbers | |
| Location: | Right side of tractor frame, near brake pedals. |
| 1963: | 28300001 (gas) |
| 1964: | 28301001 (gas) |
| 1965: | 28301985 (gas) |
| 1966: | 28302056 (gas) |
| 1967: | 28302844 (gas) |
| 1968: | 28303566 (gas) |
| 1969: | 28304801 (gas) |
| 1970: | 28305086 (gas) |
| Final: | 28305335 (gas) |
| 1964: | 28400001 (diesel) |
| 1965: | 28400051 (diesel) |
| 1966: | 28400201 (diesel) |
| 1967: | 28400386 (diesel) |
| 1968: | 28400467 (diesel) |
| 1969: | 28400527 (diesel) |
| 1970: | 28400602 (diesel) |
| Final: | 28400711 (diesel) |
Electrical | |
| Ground: | negative |
| Charging system: | generator |
| Batteries: | 1 (gas/LP) |
| 2 (diesel) | |
| Battery volts: | 12 |
Engine Detail | |
| Minneapolis-Moline | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 206 ci 3.4 L |
| Bore/Stroke: | 3.625x5.00 inches 92 x 127 mm |
| Air cleaner: | oil bath |
| Rated RPM: | 1750 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 12 |
| Oil capacity: | 6 qts 5.7 L |
| Coolant capacity: | 12 qts 11.4 L |
Dimensions | |
| Wheelbase: | 87.125 inches 221 cm |
| Length: | 126.25 inches 320 cm |
| Width: | 70.25 inches 178 cm |
| Height (steering wheel): | 65.75 inches 167 cm |
| Height (exhaust): | 78.25 inches 198 cm |
| Clearance (front axle): | 20 inches 50 cm |
| Clearance (rear axle): | 19.5 inches 49 cm |
| Front tread: | 50 to 78 inches 127 to 198 cm |
| Rear tread: | 56 to 84 inches 142 to 213 cm |
