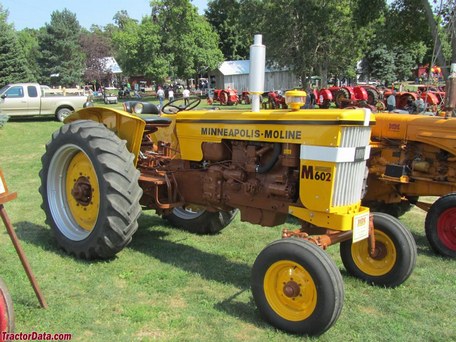

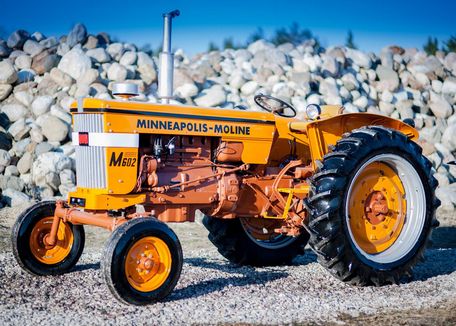

Minneapolis-Moline M-602
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Minneapolis-Moline |
| Type: | Row-Crop tractor |
| Factory: | Minneapolis, Minnesota, USA |
| Total built: | 4,729 |
| 2,957 (gas/LP) | |
| 1,772 (diesel) | |
| Original price: | $5,100 (1964 ) |
Variants | |
| tricycle | |
| M-602E: | wide-front |
| M-602N: | single front |
| standard | |
| 4WD | |
Minneapolis-Moline M-602 Power | |
| Diesel Drawbar (claimed): | 51 hp 38.0 kW |
| Gas Drawbar (claimed): | 52 hp 38.8 kW |
| LP-gas Drawbar (claimed): | 54 hp 40.3 kW |
| Diesel PTO (claimed): | 64 hp 47.7 kW |
| Gas PTO (claimed): | 65 hp 48.5 kW |
| LP-gas PTO (claimed): | 66 hp 49.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Cab: | Open operator station. |
| Transmission: | 10-speed two-speed power shift |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
M-602 Serial Numbers | |
| Location: | Right side of tractor frame, near brake pedals. |
| 1963: | 26600001 (gas) |
| 1964: | 26601276 (gas) |
| Final: | 26602957 (gas) |
| 1962: | 26700001 (diesel) |
| 1963: | 26700743 (diesel) |
| Final: | 26701772 (diesel) |
Engine Detail | |
| Minneapolis-Moline 336-4 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 336 ci 5.5 L |
| Bore/Stroke: | 4.625x5.00 inches 117 x 127 mm |
| Air cleaner: | oil bath |
| Rated RPM: | 1500 |
Transmission | |
| Transmission: | Ampli-Torc |
| Type: | two-speed power shift |
| Gears: | 10 forward and 2 reverse |
Dimensions | |
| U Wheelbase: | 94 inches 238 cm |
| E Wheelbase: | 101 inches 256 cm |
| N Wheelbase: | 94 inches 238 cm |
| U Length: | 140 inches 355 cm |
| E Length: | 147 inches 373 cm |
| N Length: | 137 inches 347 cm |
| Width: | 79 inches 200 cm |
| Height (steering wheel): | 72 inches 182 cm |
| Clearance (front axle): | 16 inches 40 cm |
| Clearance (rear axle): | 26 inches 66 cm |
| Clearance (drawbar): | 15 inches 38 cm |
| U Front tread: | 8/13 inches 20/33 cm |
| E Front tread: | 52 to 76 inches 132 to 193 cm |
| Rear tread: | 60 to 88 inches 152 to 223 cm |
