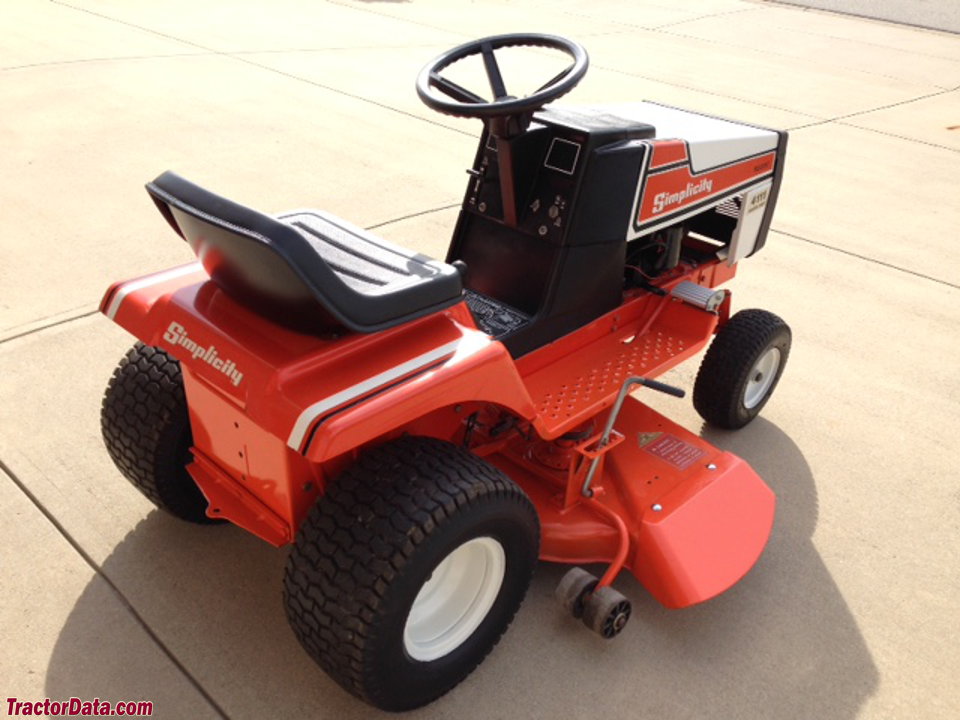

Simplicity Regent 4211
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | Simplicity (a part of Allis Chalmers) |
| Type | Lawn tractor |
| Factory | Port Washington, Wisconsin, USA |
Variants | |
| gear | |
| hydrostatic | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. Vinyl weather cab available. |
Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | manual |
Electrical | |
| Ground | negative |
| Charging amps | 3 |
| Battery volts | 12 |
| Battery AH | 39 |
Engine Detail | |
| Briggs & Stratton 252707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 399 cc 24.36 ci |
| Bore/Stroke | 3.44x2.62 inches 87 x 67 mm |
| Power (gross) | 11 hp 8.2 kW |
| Air cleaner | foam |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
Transmission | |
| Type | belt-driven gear |
| Gears | 5 forward and 1 reverse |
Dimensions | |
| Wheelbase | 45.5 inches 115 cm |
| Length | 65.25 inches 165 cm |
| Width | 35.25 inches 89 cm |
| Height (steering wheel) | 39 inches 99 cm |
| Shiping weight | 330 lbs*Tractor only 149 kg |
| 526 lbs*With 36-inch mower deck 238 kg | |
| Clearance (front axle) | 9.2 inches 23 cm |
| Clearance (rear axle) | 5.5 inches 13 cm |
