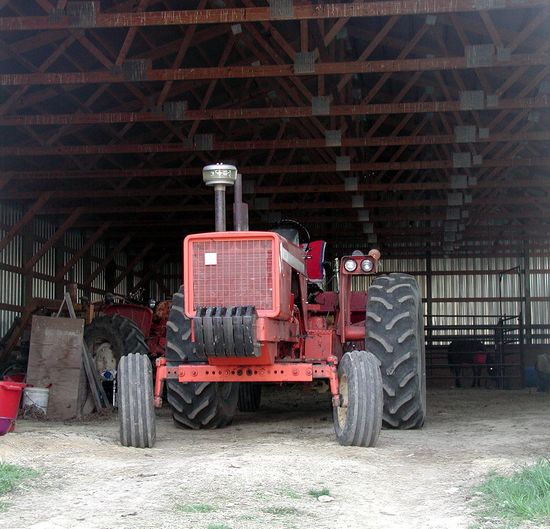

Allis Chalmers 185
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Allis Chalmers |
| Type: | Row-Crop tractor |
| Total built: | 14,961 |
| Original price: | $18,891 |
| The Allis-Chalmers 185 was one of the "Crop Hustler" models, designed to pull at higher speeds to cover more acres per hour. | |
Allis Chalmers 185 Power | |
| Drawbar (tested): | 63.82 hp 47.6 kW |
| PTO (tested): | 74.87 hp 55.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Brakes: | differential mechanical band and disc |
| Cab: | Open operator station. Optional two-post ROPS and canopy. |
| Transmission: | 8-speed partial power shift |
Capacity | |
| Fuel: | 24.6 gal 93.1 L |
| Hydraulic system: | 6.5 gal 24.6 L |
Hydraulics | |
| Type: | open |
| Capacity: | 6.5 gal 24.6 L |
| Valves: | 2 |
| Total flow: | 20 gpm 75.7 lpm |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear PTO: | continuous |
| Rear RPM: | 540 |
| 540/1000 (optional) | |
185 Serial Numbers | |
| Location: | Torque housing |
| 1970: | 1001 |
| 1971: | 1952 |
| 1972: | 2935 |
| 1973: | 3763 |
| 1974: | 4961 |
| 1975: | 6542 |
| 1976: | 8292 |
| 1977: | 10003 |
| 1978: | 11631 |
| 1979: | 13160 |
| 1980: | 14672 |
| 1981: | 15648 |
| Final: | 15961 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 55 |
Engine Detail | |
| Allis-Chalmers | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 301 ci 4.9 L |
| Bore/Stroke: | 3.875x4.25 inches 98 x 108 mm |
| Compression: | 16.25:1 |
| Rated RPM: | 2200 |
| Firing order: | 1-5-3-6-2-4 |
| Oil capacity: | 11 qts 10.4 L |
| Coolant capacity: | 17 qts 16.1 L |
Transmission | |
| Transmission: | Allis-Chalmers Power Director |
| Type: | partial power shift |
| Gears: | 8 forward and 2 reverse |
| Oil capacity: | 27 qts 25.6 L |
Dimensions | |
| Wheelbase: | 99.2 inches 251 cm |
| Length: | 158 inches 401 cm |
| Width: | 76.5 inches 194 cm |
| Clearance (front axle): | 20.5 inches 52 cm |
| Clearance (rear axle): | 32.9 inches 83 cm |
| Front tread: | 53 to 77 inches 134 to 195 cm |
| Rear tread: | 58 to 93 inches 147 to 236 cm |
