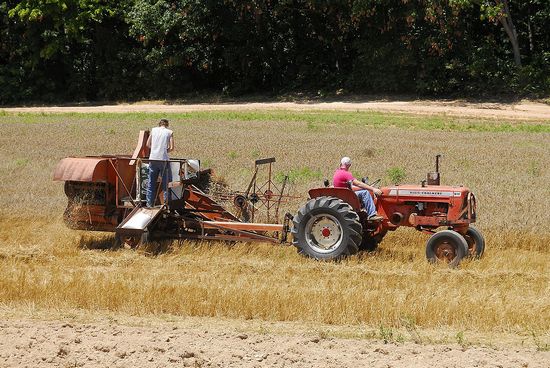

Allis Chalmers D15
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Allis Chalmers |
| Type: | Row-Crop tractor |
| Factory: | West Allis, Wisconsin, USA |
| Total built: | 7,169 (total) |
| 6,212 (gas/LP) | |
| 957 (diesel) | |
| The Allis-Chalmers D15 was an improved version of the D14, which it replaced in 1960. Higher power for the gas and LPG engines came from increased compression and RPMs. A diesel engine was also made available. | |
Allis Chalmers D15 Power | |
| Drawbar (claimed): | 35.33 hp 26.3 kW |
| PTO (claimed): | 40.0 hp 29.8 kW |
| Plows: | 3 |
| Drawbar (tested): | 35.33 hp 26.3 kW |
| PTO (tested): | 40.00 hp 29.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| power optional | |
| Brakes: | expanding shoe |
| Cab: | Open operator station. |
| Transmissions: | 8-speed partial power shift |
| 4-speed | |
Capacity | |
| Fuel: | 16 gal 60.6 L (gas/diesel) |
| 15.75 gal 59.6 L (LP gas) | |
| Hydraulic system: | 2.5 gal 9.5 L |
Hydraulics | |
| Capacity: | 2.5 gal 9.5 L |
| Pressure: | 2300 psi 158.6 bar |
Tractor hitch | |
| Rear Type: | II/I |
| Type: | Snap-Coupler |
Power Take-off (PTO) | |
| Rear PTO: | live |
| Rear RPM: | 540 |
D15 Serial Numbers | |
| Location: | Torque housing |
| 1960: | 1001 |
| 1961: | 1900 |
| 1962: | 6470 |
| Final: | 8169 |
Electrical | |
| Ground: | positive |
| Batteries: | 1 (gas/LP) |
| 2 (diesel) | |
| Battery volts: | 12 |
| Battery AH: | 70 |
Engine Detail | |
| Allis Chalmers | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 149 ci 2.4 L |
| Bore/Stroke: | 3.50x3.875 inches 89 x 98 mm |
| Fuel use: | 3.373 gal/hour 12.8 l/hour |
| Air cleaner: | oil bath |
| Compression: | 7.75:1 |
| Rated RPM: | 2000 |
| Firing order: | 1-2-4-3 |
| Starter volts: | 12 |
| Sparkplug gap: | 0.025 inches 0.635 mm |
| Point gap: | 0.022 inches 0.559 mm |
| Intake valve clearance: | 0.009 inches 0.229 mm hot |
| Exhaust valve clearance: | 0.015 inches 0.381 mm hot |
Dimensions | |
| Wheelbase: | 88 inches 223 cm |
| Length: | 130.4 inches 331 cm |
| Width: | 67 inches 170 cm |
| Height (hood): | 57.3 inches 145 cm |
| Height (exhaust): | 80.2 inches 203 cm |
| Clearance (front axle): | 21.2 inches 53 cm |
| Clearance (rear axle): | 24.4 inches 61 cm |
| Front tread: | 51 to 78 inches 129 to 198 cm |
| Rear tread: | 54 to 80 inches 137 to 203 cm |
| Rear tread: | 54 to 88 inches 137 to 223 cm (wide axle) |
