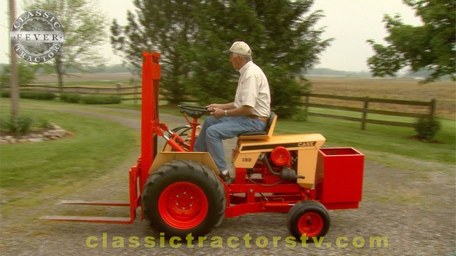

J.I. Case 190
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | J.I. Case |
| Type | Garden tractor |
| Factory | Winneconne, Wisconsin, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | hydraulic |
| Cab | Open operator station |
190 Serial Numbers | |
| Location: | Serial number plate on dash, below and to the right of the steering column. |
Electrical | |
| Ground | negative |
| Charging system | starter-generator |
| Battery volts | 12 |
Engine Detail | |
| Kohler K301S | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 476 cc 29.07 ci |
| Bore/Stroke | 3.375x3.25 inches 86 x 83 mm |
| Power | 12 hp 8.9 kW |
| Fuel system | carburetor |
| Compression | 6:1 |
| Rated RPM | 3150 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug | Prestolite 14 L7 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.010 inches 0.254 mm |
| Exhaust valve clearance | 0.020 inches 0.508 mm |
Transmission | |
| Transmission | Hydra-Static |
| Type | hydraulic drive |
| Gears | infinite forward and reverse (2-range) |
Dimensions | |
| Wheelbase | 46 inches 116 cm |
| Length | 70 inches 177 cm |
| Height (steering wheel) | 44 inches 111 cm |
| Height (hood) | 38 inches 96 cm |
| Shiping weight | 780 lbs 353 kg |
| Ground clearance | 11 inches 27 cm |
