Allis Chalmers G
Type: Tool Carrier Tractors
Contents:
Production | |
| Manufacturer: | Allis Chalmers |
| Type: | Tool Carrier tractor |
| Factory: | Gadsden, Alabama, USA |
| Total built: | 29,976 |
| Original price: | $970 (1955) |

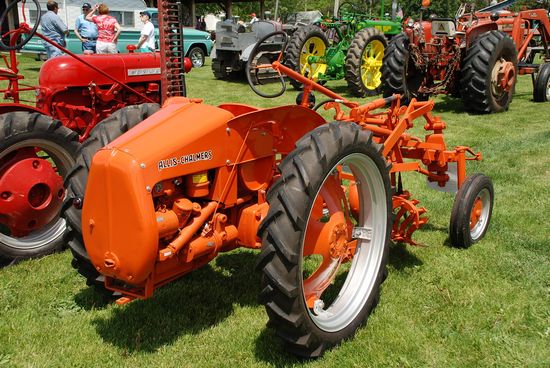

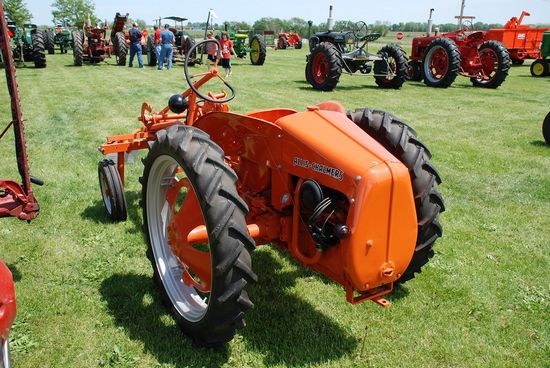

| The Allis-Chalmers G was designed for small farms and gardens. The small, rear-engine machine was more like the motor cultivators of the 1920s than a tractor. It featured a full line of custom implements that mounted under the belly. | |
Allis Chalmers G Power | |
| Drawbar (claimed): | 10 hp 7.5 kW |
| Drawbar (tested): | 9.04 hp 6.7 kW |
| Belt (tested): | 10.33 hp 7.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | mechanical external expanding |
| Cab: | Open operator station. |
| Transmissions: | 3-speed non-synchronized gear |
| 4-speed non-synchronized | |
G Serial Numbers | |
| Location: | Top of transmission case, rear of shift lever |
| 1948: | 6 |
| 1949: | 10961 |
| 1950: | 23180 |
| 1951: | 24006 |
| 1952: | 25269 |
| 1953: | 26497 |
| 1954: | 28036 |
| 1955: | 29036 |
| Final: | 29976 |
Electrical | |
| Ground: | positive |
| Charging system: | generator |
| Battery volts: | 6 |
Engine Detail | |
| Continental AN-62 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled vertical L-head | |
| Displacement: | 62 ci 1.0 L |
| Bore/Stroke: | 2.375x3.50 inches 60 x 89 mm |
| Air cleaner: | oil bath |
| Compression: | 5.75:1 |
| Rated RPM: | 1800 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 6 |
| Coolant capacity: | 6.5 qts 6.2 L |
| Sparkplug gap: | 0.025 inches 0.635 mm |
| Point gap: | 0.020 inches 0.508 mm |
| Intake valve clearance: | 0.010 inches 0.254 mm (hot) |
| Exhaust valve clearance: | 0.010 inches 0.254 mm (hot) |
Dimensions | |
| Length: | 114.5 inches 290 cm |
| Height (steering wheel): | 55.7 inches 141 cm |
| Front tread: | 36 to 64 inches 91 to 162 cm |
| Rear tread: | 36 to 64 inches 91 to 162 cm |
