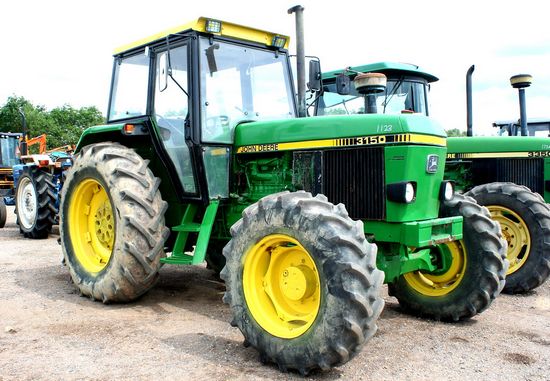

John Deere 3150
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| Original price: | $44,000 (1987) |
| The John Deere 3150 was the first Deere tractor to feature mechanical front-wheel drive as standard equipment. | |
John Deere 3150 Power | |
| Drawbar (claimed): | 83 hp 61.9 kW |
| PTO (claimed): | 95 hp 70.8 kW |
| Drawbar (tested): | 81.92 hp 61.1 kW |
| PTO (tested): | 96.06 hp 71.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab optional. |
| Transmission: | 16-speed partial power shift |
Capacity | |
| Fuel: | 35.4 gal 134.0 L |
| Hydraulic system: | 12.4 gal 46.9 L |
Hydraulics | |
| Type: | closed center |
| Capacity: | 12.4 gal 46.9 L |
| Valves: | 2 |
| Pump flow: | 22 gpm 83.3 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 6,300 lbs 2857 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@2400 1000@2400 |
3150 Serial Numbers | |
| 1985: | 532000 |
| 1986: | 562001 |
| 1987: | 587950 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 359 ci 5.9 L |
| Bore/Stroke: | 4.19x4.33 inches 106 x 110 mm |
| Air cleaner: | paper elements |
| Compression: | 17.8:1 |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
| Coolant capacity: | 18 qts 17.0 L |
Transmission | |
| Transmission: | Top Shaft Synchronized (TSS) Hi-Lo |
| Type: | partial power shift |
| Gears: | 16 forward and 4 reverse |
Dimensions | |
| Wheelbase: | 101.7 inches 258 cm |
| Operating weight: | 11,770 lbs 5338 kg (4WD cab) |
| Ballasted weight: | 12,300 lbs 5579 kg |
| Front tread: | 66.9 to 82.7 inches 169 to 210 cm |
| Rear tread: | 62.2 to 94.9 inches 157 to 241 cm |
