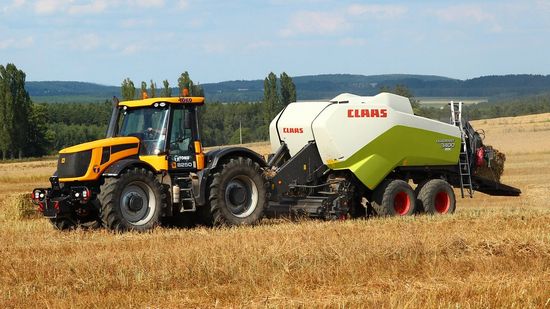

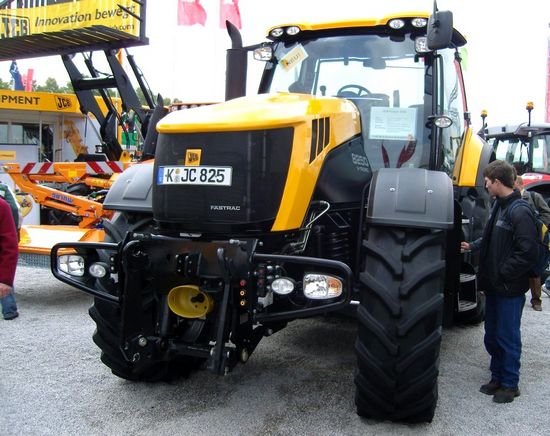

JCB Fastrac 8250

Production: 2005 - 2011

Production
Manufacturer:	JCB
Type:	Four-wheel Drive (4WD) tractor

JCB Fastrac 8250 Power
Engine:	260 hp 193.9 kW
PTO (claimed):	225 hp 167.8 kW

Mechanical
Chassis:	4x4 4WD
Brakes:	dual caliper disc ABS
Cab:	cab with air conditioning
Transmission:	continuously variable

Capacity
Fuel:	158.5 gal 599.9 L
Hydraulic system:	47.6 gal 180.2 L

Hydraulics
Capacity:	47.6 gal 180.2 L
Pressure:	3,046 psi 210.0 bar
Valves:	3 or 4 rear
1 or 2 front
Total flow:	55.5 gpm 210.1 lpm

Tractor hitch
Rear Type:	III
Rear lift:	22,045 lbs 9999 kg
Front Hitch:	II (optional)
Front lift:	7,716 lbs 3499 kg (at ends)

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Front PTO:	independent (optional)
Front RPM:	1000

Electrical
Ground:	negative
Charging amps:	160
Batteries:	2
Battery CCA:	950
Battery volts:	12

Engine Detail
Cummins QSC
intercooled turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	504.5 ci 8.3 L
Bore/Stroke:	4.488x5.315 inches 114 x 135 mm
Power:	260 hp 193.9 kW
Air cleaner:	Powercore dry element
Rated RPM:	2200
Torque:	869.6 lb-ft 1179.2 Nm
Torque RPM:	1400

Transmission
Type:	continuously variable
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	122.8 inches 311 cm
Length:	222.4 inches 564 cm
Width:	100.4 inches 255 cm
Height:	133.5 inches 339 cm
Weight:	23,460 lbs 10641 kg
Ground clearance:	18.5 inches 46 cm
