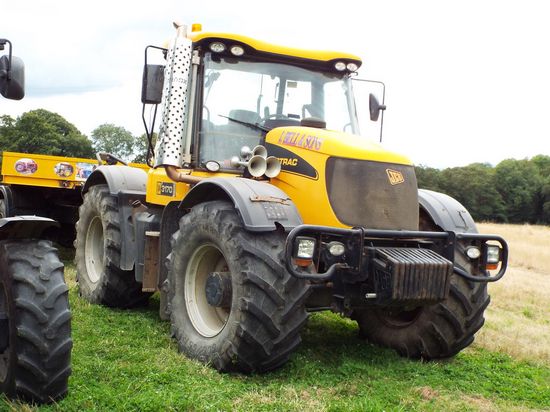

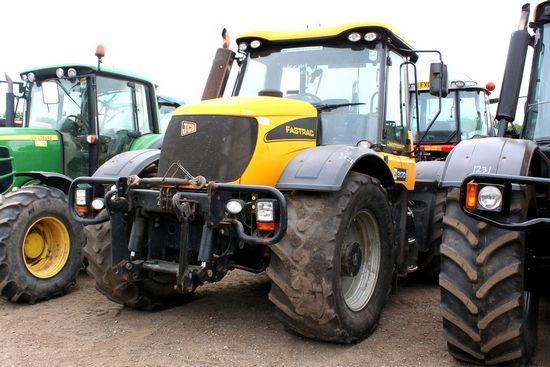

JCB Fastrac 3170

Production: 2004 - 2006

Production
Manufacturer:	JCB
Type:	Four-wheel Drive (4WD) tractor

JCB Fastrac 3170 Power
Engine:	173 hp 129.0 kW
PTO (claimed):	145 hp 108.1 kW

Mechanical
Chassis:	4x4 4WD
Steering:	power assist
Brakes:	disc ABS
dual caliper optional
Cab:	cab with air conditioning
Transmission:	54-speed

Capacity
Fuel:	92.5 gal 350.1 L
Hydraulic system:	31.7 gal 120.0 L

Hydraulics
Capacity:	31.7 gal 120.0 L
Pressure:	3,046 psi 210.0 bar
Valves:	3 or 4
Total flow:	26.2 gpm 99.2 lpm

Tractor hitch
Rear Type:	III
Rear lift:	15,431 lbs 6999 kg
17,640 lbs 8001 kg (optional)
Front Hitch:	II (optional)
Front lift:	7,716 lbs 3499 kg (at ends)

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Front PTO:	independent (optional)
Front RPM:	540/1000

Electrical
Charging amps:	150
Batteries:	2
Battery volts:	12

Engine Detail
Cummins 6BTAA
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	359 ci 5.9 L
Bore/Stroke:	4.016x4.724 inches 102 x 120 mm
Power:	173 hp 129.0 kW
Air cleaner:	dual dry element
Rated RPM:	2200
Torque:	579.7 lb-ft 786.1 Nm
Torque RPM:	1300

Transmission
Transmission:	synchromesh
Gears:	54 forward and 18 reverse

Dimensions
Wheelbase:	120.5 inches 306 cm
Length:	204.7 inches 519 cm
Width:	99.6 inches 252 cm
Height:	124.0 inches 314 cm
Weight:	17,570 lbs 7969 kg
Ground clearance:	16.1 inches 40 cm
