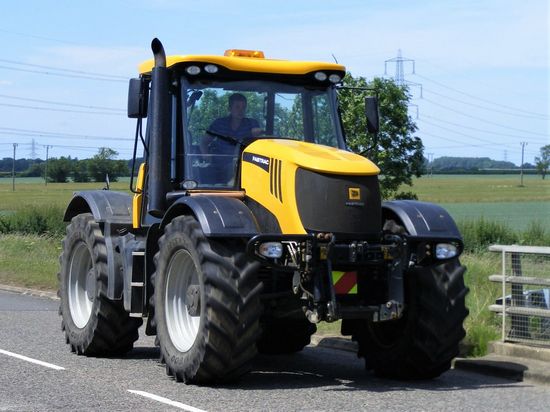

JCB Fastrac 3230

Production: 2006 - 2010

Production
Manufacturer:	JCB
Type:	Four-wheel Drive (4WD) tractor

JCB Fastrac 3230 Power
Engine:	230 hp 171.5 kW
PTO (claimed):	190 hp 141.7 kW

Mechanical
Chassis:	4x4 4WD
Steering:	power assist
Brakes:	disc ABS
dual caliper optional
Cab:	cab with air conditioning
Transmission:	54-speed

Capacity
Fuel:	92.5 gal 350.1 L
Hydraulic system:	31.7 gal 120.0 L

Hydraulics
Capacity:	31.7 gal 120.0 L
Pressure:	3,046 psi 210.0 bar
Valves:	3 or 4
Total flow:	27.5 gpm 104.1 lpm

Tractor hitch
Rear Type:	III
Rear lift:	15,431 lbs 6999 kg
17,640 lbs 8001 kg (optional)
Front Hitch:	II (optional)
Front lift:	7,716 lbs 3499 kg (at ends)

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Front PTO:	independent (optional)
Front RPM:	540/1000

Electrical
Charging amps:	160
Batteries:	2
Battery volts:	12

Engine Detail
Cummins QSB6.7
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	409.0 ci 6.7 L
Bore/Stroke:	4.213x4.882 inches 107 x 124 mm
Power:	230 hp 171.5 kW
Air cleaner:	dual dry element
Rated RPM:	2300
Torque:	617.3 lb-ft 837.1 Nm
Torque RPM:	1500

Transmission
Transmission:	synchromesh
Gears:	54 forward and 18 reverse

Dimensions
Wheelbase:	120.5 inches 306 cm
Length:	204.7 inches 519 cm
Width:	99.6 inches 252 cm
Height:	124.0 inches 314 cm
Weight:	17,570 lbs 7969 kg
Ground clearance:	16.1 inches 40 cm
