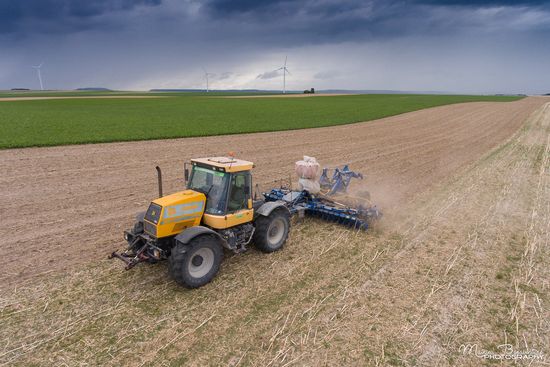

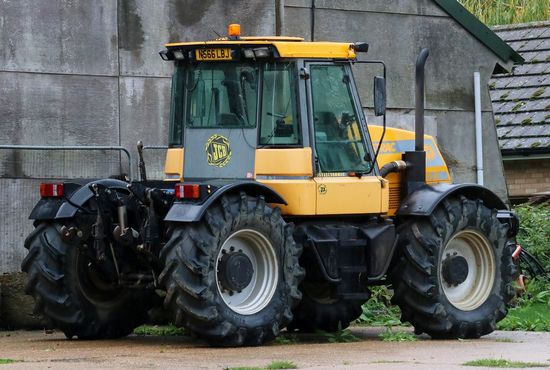

JCB Fastrac 185
Contents:
Production | |
| Manufacturer: | JCB |
| Type: | Four-wheel Drive (4WD) tractor |
JCB Fastrac 185 Power | |
| Engine: | 188 hp 140.2 kW |
Mechanical | |
| Chassis: | 4x4 4WD |
| Steering: | power assist |
| Brakes: | pneumatic dry disc |
| Cab: | Cab standard with air conditioning. |
| Transmission: | 36-speed synchromesh |
Capacity | |
| Fuel: | 74 gal 280.1 L |
| Hydraulic system: | 15.85 gal 60.0 L |
Hydraulics | |
| Capacity: | 15.85 gal 60.0 L |
| Pressure: | 3046 psi 210.0 bar |
| Valves: | 2 |
| Pump flow: | 15.85 gpm 60.0 lpm |
| 20.3 gpm 76.8 lpm *Optional | |
| Total flow: | 20.8 gpm 78.7 lpm |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electronic draft control |
| Rear lift (at ends): | 15435 lbs 7001 kg |
| Front Hitch: | II*Optional |
| Front lift (at ends): | 6615 lbs 3000 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540/1000 (1.375) |
| 540/1000 (1.75) | |
| Engine RPM: | 540@1966 1000@2196 |
| Front PTO: | independent |
| Front RPM: | 540/1000 (1.375) |
| 540/1000 (1.75) | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 95 |
| Batteries: | 2 |
| Battery volts: | 12 |
Engine Detail | |
| Cummins 6 BTA | |
| intercooled turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 358.8 ci 5.9 L |
| Bore/Stroke: | 4.016x4.724 inches 102 x 120 mm |
| Power: | 188 hp 140.2 kW |
| Fuel system: | direct injection |
| Air cleaner: | dual dry element |
| Rated RPM: | 2400 |
| Torque: | 553.2 lb-ft 750.1 Nm |
| Torque RPM: | 1400 |
| Starter volts: | 12 |
Transmission | |
| Type: | synchromesh |
| Gears: | 36 forward and 12 reverse |
| Six gears (1-6) in three ranges (low, medium, high) plus reverse range. Two-speed electro-hydraulic power shift. Two design speed options available, with 65 or 75 kph top speed. | |
Dimensions | |
| Wheelbase: | 118 inches 299 cm |
| Length: | 227 inches 576 cm |
| Width: | 93 inches 236 cm |
| Height (cab): | 117 inches 297 cm |
| Weight: | 14332 lbs 6500 kg |
| Ground clearance: | 16 inches 40 cm |
| Front tread: | 74 inches 187 cm |
| Rear tread: | 74 inches 187 cm |
