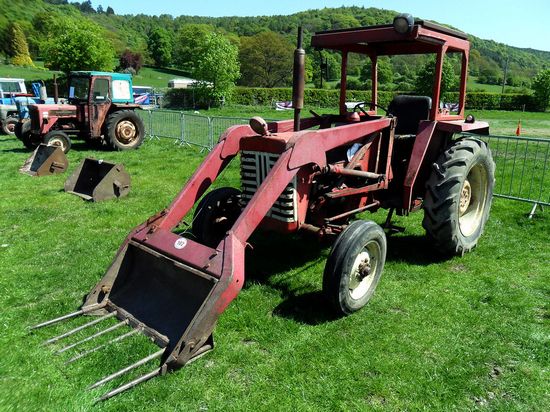

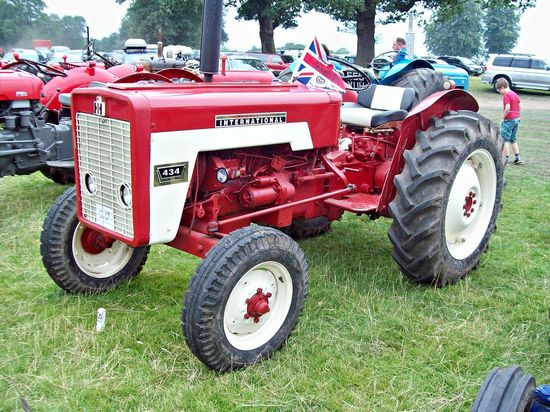

International Harvester 434
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Utility tractor |
| Factories: | Bradford, England |
| Louisville, Kentucky, USA | |
International Harvester 434 Power | |
| Engine: | 43 hp 32.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | mechanical |
| Cab: | Open operator station. |
| Transmission: | 8-speed |
Hydraulics | |
| Pump flow: | 7.0 gpm 26.5 lpm |
Tractor hitch | |
| Rear lift: | 2579 lbs 1169 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
434 Serial Numbers | |
| Location: | Serial number plate on the right side of the 434 frame. |
| 1966: | 501 (diesel) |
| 1967: | 8593 (diesel) |
| 1968: | 16435 (diesel) |
| 1969: | 22080 (diesel) |
| 1970: | 22887 (diesel) |
| 1971: | 31618 (diesel) |
| Final: | 31697 (diesel) |
| 1966: | 501 (gasoline) |
| 1967: | 1050 (gasoline) |
| 1968: | 1963 (gasoline) |
| 1969: | 2441 (gasoline) |
| 1970: | 2952 (gasoline) |
| Final: | 3359 (gasoline) |
Electrical | |
| Ground: | positive |
| Charging system: | Lucas generator |
| Charging amps: | 50 |
| Battery CCA: | 1000 |
Engine Detail | |
| International Harvester | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 154 ci 2.5 L |
| Bore/Stroke: | 3.50x4.00 inches 89 x 102 mm |
| Power: | 43 hp 32.1 kW |
| Rated RPM: | 2000 |
| Torque: | 115.1 lb-ft 156.1 Nm |
| Torque RPM: | 1300 |
| Starter volts: | 12 |
| Oil capacity: | 6 qts 5.7 L |
Transmission | |
| Gears: | 8 forward and 2 reverse |
Dimensions | |
| Wheelbase: | 76.38 inches 194 cm |
| Length: | 118.11 inches 299 cm |
| Height: | 87.40 inches 221 cm |
| Weight: | 4630 lbs 2100 kg |
