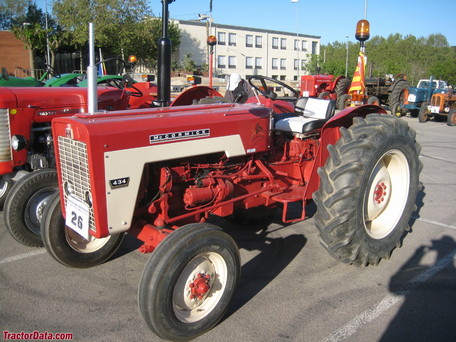

International Harvester 434

Production: 1966 - 1972

Production
Manufacturer:	International Harvester
Type:	Utility tractor
Factory:	Geelong, Australia

International Harvester 434 Power
Engine:	43 hp 32.1 kW
Drawbar (claimed):	35 hp 26.1 kW
Belt (claimed):	36.6 hp 27.3 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	8-speed gear

Hydraulics
Pump flow:	7.0 gpm 26.5 lpm

Tractor hitch
Rear lift:	2579 lbs 1169 kg

Power Take-off (PTO)
Rear RPM:	540

434 Serial Numbers
1966:	501
1967:	601
1968:	1971
1969:	2902
1970:	3877
1971:	4747
1972:	5713
Final:	5946

Electrical
Ground:	positive

Engine Detail
International Harvester
diesel
4-cylinder
liquid-cooled
Displacement:	154 ci 2.5 L
Bore/Stroke:	3.50x4.00 inches 89 x 102 mm
Power:	43 hp 32.1 kW
Rated RPM:	2000
Torque:	115.1 lb-ft 156.1 Nm
Torque RPM:	1300
Starter volts:	12
Oil capacity:	6 qts 5.7 L

Transmission
Type:	gear
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	76.38 inches 194 cm
Length:	118.11 inches 299 cm
Height:	87.40 inches 221 cm
Weight:	4630 lbs 2100 kg
