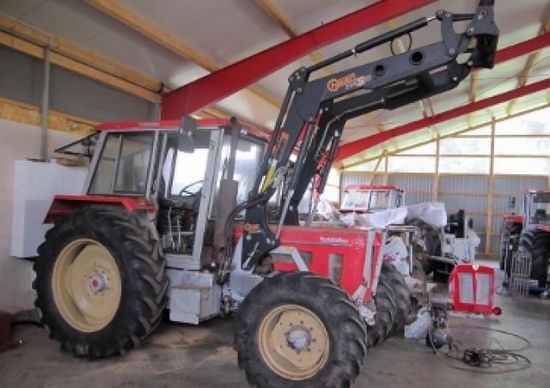

Schluter Compact 1050 V 6

Production: 1982 - 1984

Contents:

Production

Manufacturer:Schluter

Schluter Compact 1050 V 6 Power

Engine:100 hp 74.6 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:drum
Transmission:12-speed

Hydraulics

Total flow:11.9 gpm 45.0 lpm

Tractor hitch

Rear lift:7,938 lbs 3600 kg
9,922.5 lbs 4500 kg (optional)

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

MAN D 0226 ME 51
diesel
6-cylinder
Displacement:347.0 ci 5.7 L
Bore/Stroke:4.016x4.567 inches 102 x 116 mm
Power:100 hp 74.6 kW
Rated RPM:2200
Torque:275.1 lb-ft 373.0 Nm
Torque RPM:1300

Transmission

Gears:12 forward and 5 reverse

Dimensions

Wheelbase:94.5 inches 240 cm
Length:164.2 inches 417 cm
Height:106.7 inches 271 cm
Weight:10,143 lbs 4600 kg
