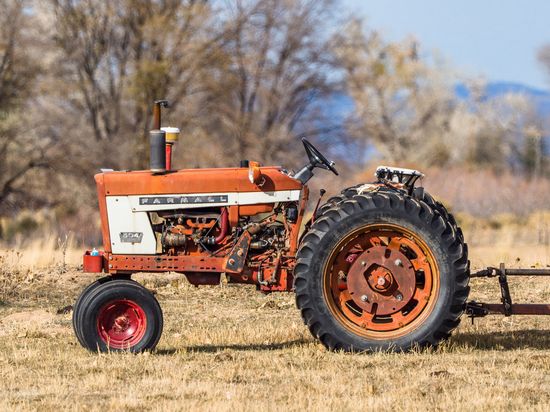

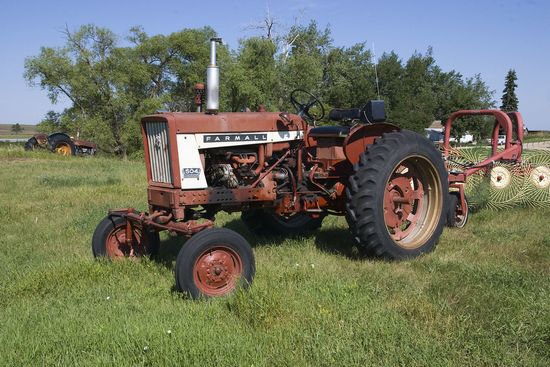

Farmall 504

Production: 1961 - 1968

Production
Manufacturer:	Farmall (a part of International Harvester)
Type:	Row-Crop tractor

Variants
row-crop
utility
high-clearance
IH 2504:	industrial

Farmall 504 Power
Drawbar (tested):	40.41 hp 30.1 kW
PTO (tested):	46.20 hp 34.5 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	differential mechanical disc
Cab:	Open operator station.
Transmissions:	5-speed unsynchronized gear
10-speed partial power shift

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540

504 Serial Numbers
Location:	Right side of clutch housing
1961:	501
1962:	810
1963:	7000
1964:	7732
1965:	10696
1966:	13596
1967:	15113
1968:	16115

Engine Detail
International Harvester D188
diesel
4-cylinder
liquid-cooled
Displacement:	187.5 ci 3.1 L
Bore/Stroke:	3.688x4.390 inches 94 x 112 mm
Air cleaner:	oil bath
Compression:	18.7:1
Rated RPM:	2200
Starter volts:	12

Dimensions
Operating weight:	5,430 lbs 2463 kg
Ballasted weight:	8,075 lbs 3662 kg
