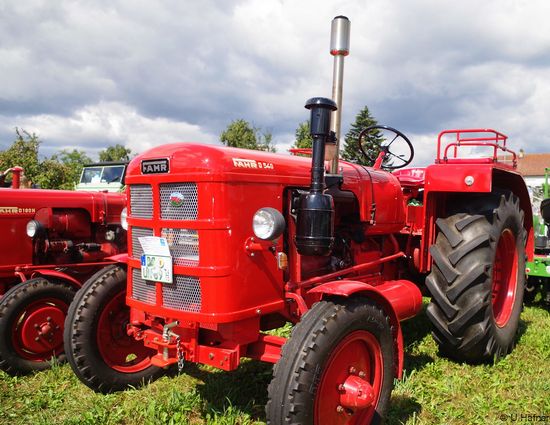

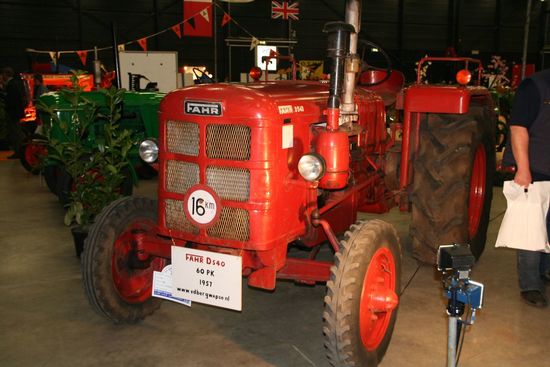

Fahr D540

Production: 1955 - 1958

Production
Manufacturer:	Fahr
Total built:	866

Fahr D540 Power
Engine:	60 hp 44.7 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	5-speed gear

Engine Detail
Deutz F4L514
diesel
4-cylinder
air-cooled
Displacement:	324.6 ci 5.3 L
Bore/Stroke:	4.33x5.51 inches 110 x 140 mm
Power:	60 hp 44.7 kW

Transmission
Transmission:	ZF A26
Type:	gear
Gears:	5 forward and 2 reverse

Dimensions
Wheelbase:	90.6 inches 230 cm
Length:	153.1 inches 388 cm
Width:	78.3 inches 198 cm
Height:	91.5 inches 232 cm
Weight:	7650 lbs 3470 kg
