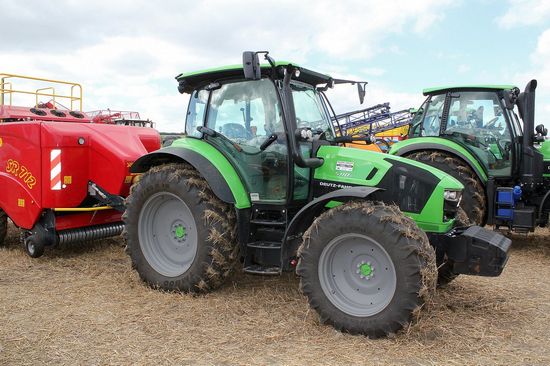

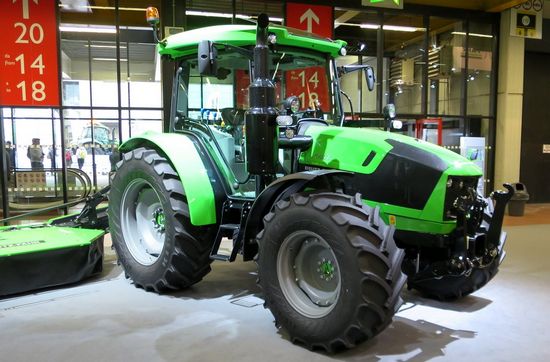

Deutz-Fahr 5110
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Deutz-Fahr |
| Type: | Utility tractor |
Variants | |
| 5110TTV: | CVT transmission |
Deutz-Fahr 5110 Power | |
| Engine (gross): | 103.3 hp 77.0 kW |
| Engine (max): | 95 hp 70.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 30-speed partial power shift |
| 60-speed partial power shift | |
| infinitely variable transmission | |
Hydraulics | |
| Pressure: | 2683 psi 185.0 bar |
| Pump flow: | 15.85 gpm 60.0 lpm |
| 23.8 gpm 90.1 lpm *Optional | |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 10251.5 lbs 4650 kg |
| 14550.5 lbs 6600 kg *Optional | |
| Front lift: | 4078.6 lbs 1850 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540/540E/1000/1000E |
| 540/540E/1000*With TTV option. | |
| Front PTO: | independent |
| Clutch: | electro-hydraulic |
| Front RPM: | 1000 |
Electrical | |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| Deutz TCD 3.6 L04 | |
| turbocharged intercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 220.9 ci 3.6 L |
| Bore/Stroke: | 3.86x4.72 inches 98 x 120 mm |
| Rated Power (ECE R120): | 103.3 hp 77.0 kW |
| Maximum Power (ECE R120): | 95 hp 70.8 kW |
| Fuel system: | common rail |
| Rated RPM: | 2200 |
| Torque: | 324.5 lb-ft 440.0 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 10.6 qts 10.0 L |
| Oil change: | 500 h |
Dimensions | |
| 2WD Wheelbase: | 94.1 inches 239 cm |
| 4WD Wheelbase: | 95.7 inches 243 cm |
| Length: | 168.1 inches 426 cm |
| Width: | 93.7 inches 237 cm |
| Height (cab): | 106.9 inches 271 cm |
| Front tread: | 68 to 83.8 inches 172 to 212 cm |
| Rear tread: | 67.2 to 82.9 inches 170 to 210 cm |
