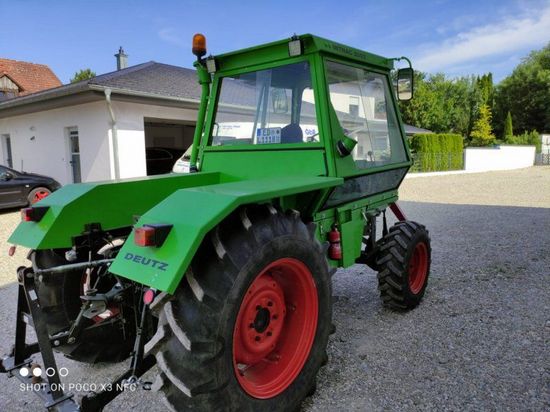

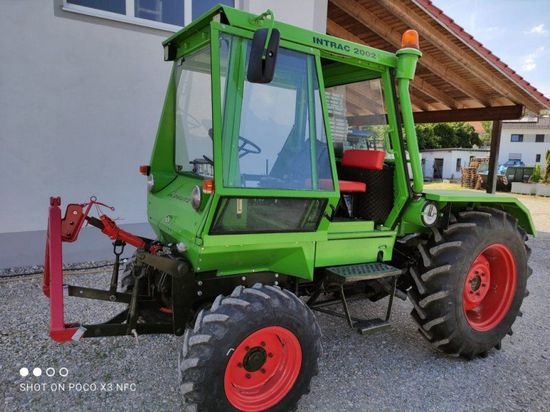

Deutz-Fahr Intrac 2002

Production: 1972 - 1974

Production
Manufacturer:	Deutz-Fahr
Type:	Tool Carrier tractor

Variants
2002A:	4WD

Deutz-Fahr Intrac 2002 Power
Engine:	50.3 hp 37.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
2WD Steering:	manual
4WD Steering:	power
Transmissions:	8-speed synchronized
12-speed creeper

Hydraulics
Pump flow:	7.2 gpm 27.3 lpm

Tractor hitch
Rear Type:	II/I
Rear lift:	4930 lbs 2236 kg
Front Hitch:	I
Front lift:	2579 lbs 1169 kg

Power Take-off (PTO)
Rear RPM:	540/1000 (1.375)
Engine RPM:	2100
Front RPM:	1000 (1.375)
Engine RPM:	2100

Engine Detail
Deutz F3L912
diesel
3-cylinder
air-cooled
Displacement:	172.5 ci 2.8 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
Power:	50.3 hp 37.5 kW
Rated RPM:	2300

Dimensions
2WD Wheelbase:	84.7 inches 215 cm
4WD Wheelbase:	86.6 inches 219 cm
Length:	167.3 inches 424 cm
Width:	74.4 inches 188 cm
Height (cab):	98.4 inches 249 cm
2WD Weight:	5372 lbs 2436 kg
4WD Weight:	6724 lbs 3050 kg
2WD Ground clearance:	17.9 inches 45 cm
4WD Ground clearance:	10 inches 25 cm
2WD Front tread:	60.6 to 72.4 inches 153 to 183 cm
Front tread:	60.6 inches 153 cm
Rear tread:	59.8 to 71.7 inches 151 to 182 cm
