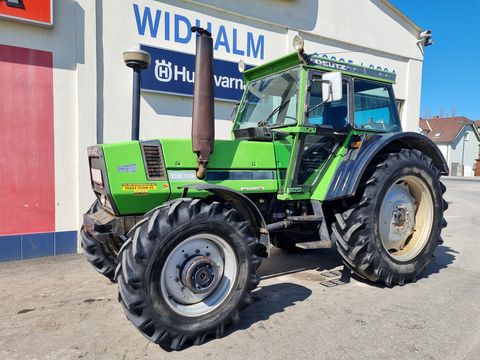

Deutz-Fahr DX 7.10

Production: 1984 - 1989

Production
Manufacturer:	Deutz-Fahr
Type:	Row-Crop tractor

Deutz-Fahr DX 7.10 Power
Engine:	160 hp 119.3 kW
PTO (claimed):	145 hp 108.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
OPTITRAC front
Steering:	power
Brakes:	hydraulic dry disc
Cab:	Mastercab standard with air-conditioning.
Transmissions:	24-speed two-speed power shift
32-speed

Hydraulics
Type:	open center
Pressure:	2538 psi 175.0 bar
Valves:	1 to 3
Pump flow:	27.3 gpm 103.3 lpm

Tractor hitch
Rear Type:	III
Rear lift (at ends):	18739 lbs 8500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@1920 1000@1920
Front PTO:	independent
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Deutz F6L 913
turbocharged diesel
6-cylinder
air-cooled
Displacement:	373.9 ci 6.1 L
Bore/Stroke:	4.016x4.92 inches 102 x 125 mm
Power:	160 hp 119.3 kW
Rated RPM:	2400
Starter:	electric
Starter volts:	12
Oil capacity:	17 qts 16.1 L

Dimensions
2WD Wheelbase:	103.5 inches 262 cm
4WD Wheelbase:	111.3 inches 282 cm
Length:	187.8 inches 477 cm
Width:	93 inches 236 cm
Height:	109.8 inches 278 cm
2WD Weight:	11905 lbs 5400 kg
4WD Weight:	12897 lbs 5850 kg
Rear tread:	64 to 88 inches 162 to 223 cm
