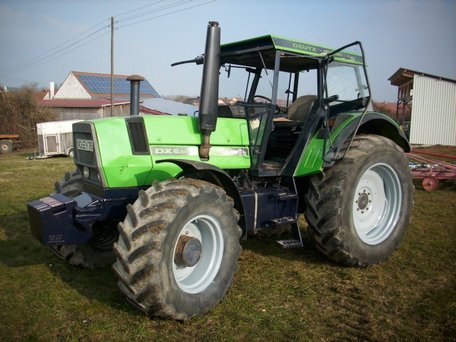

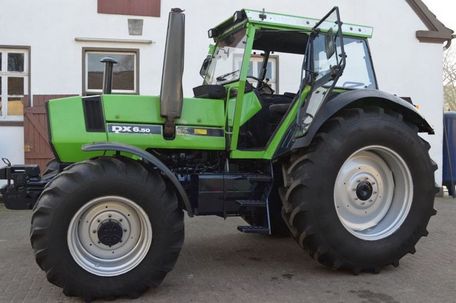

Deutz-Fahr DX 6.50

Production: 1983 - 1990

Production
Manufacturer:	Deutz-Fahr
Type:	Row-Crop tractor

Deutz-Fahr DX 6.50 Power
Engine:	137 hp 102.2 kW
PTO (claimed):	120 hp 89.5 kW
Drawbar (tested):	101.36 hp 75.6 kW
PTO (tested):	122.06 hp 91.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
OPTITRAC front
Steering:	power
Brakes:	hydraulic dry disc
Cab:	Mastercab standard with air-conditioning.
Transmissions:	24-speed two-speed power shift
32-speed two-speed power shift

Hydraulics
Type:	open center
Pressure:	2538 psi 175.0 bar
Valves:	1 to 3
Pump flow:	24 gpm 90.8 lpm

Tractor hitch
Rear Type:	III
Rear lift (at ends):	14330 lbs 6500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@2192 1000@2214
Front PTO:	independent
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Deutz BF6L 913
turbocharged diesel
6-cylinder
air-cooled
Displacement:	373.9 ci 6.1 L
Bore/Stroke:	4.016x4.92 inches 102 x 125 mm
Power:	137 hp 102.2 kW
Rated RPM:	2300
Starter:	electric
Starter volts:	12
Oil capacity:	17 qts 16.1 L

Dimensions
2WD Wheelbase:	105.8 inches 268 cm
4WD Wheelbase:	106.4 inches 270 cm
Length:	179.5 inches 455 cm
Width:	93.3 inches 236 cm
2WD Height:	109.6 inches 278 cm
4WD Height:	116.7 inches 296 cm
2WD Weight:	11243 lbs 5099 kg
4WD Weight:	12081 lbs 5479 kg
Rear tread:	64 to 88 inches 162 to 223 cm
