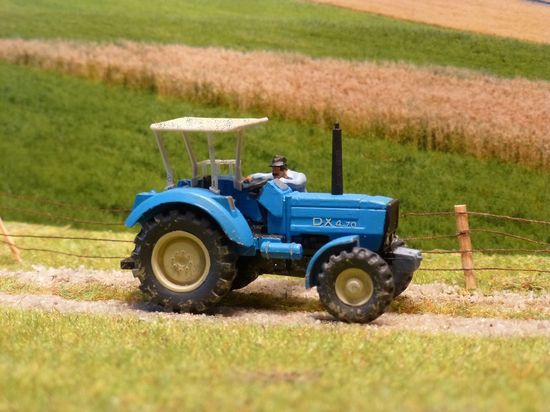

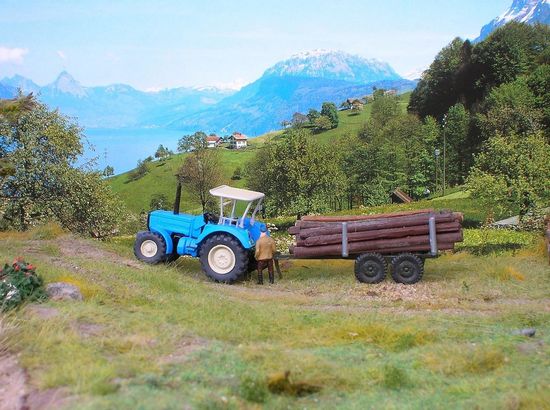

Deutz-Fahr DX 4.70

Production: 1983 - 1989

Production
Manufacturer:	Deutz-Fahr
Type:	Row-Crop tractor

Deutz-Fahr DX 4.70 Power
Engine:	90 hp 67.1 kW
PTO (claimed):	84 hp 62.6 kW
Drawbar (tested):	73.23 hp 54.6 kW
PTO (tested):	85.18 hp 63.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
OPTITRAC front
Steering:	power
Brakes:	hydraulic dry disc
Cab:	Mastercab standard with air-conditioning.
Transmissions:	15-speed fully synchronized
20-speed

Hydraulics
Type:	open center
Pressure:	2538 psi 175.0 bar
Valves:	1 to 3
Pump flow:	19.6 gpm 74.2 lpm

Tractor hitch
Rear Type:	II
Rear lift (at ends):	8377 lbs 3799 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@2025 1000@2110
Front PTO:	independent
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Deutz BF4L913
turbocharged diesel
4-cylinder
air-cooled
Displacement:	249.3 ci 4.1 L
Bore/Stroke:	3.94x4.84 inches 100 x 123 mm
Power:	90 hp 67.1 kW
Rated RPM:	2300
Starter:	electric
Starter volts:	12
Oil capacity:	12 qts 11.4 L

Dimensions
2WD Wheelbase:	92 inches 233 cm
4WD Wheelbase:	94.5 inches 240 cm
Length:	161.02 inches 408 cm
2WD Height:	104 inches 264 cm
4WD Height:	107 inches 271 cm
2WD Weight:	8466 lbs 3840 kg
4WD Weight:	9193 lbs 4169 kg
Rear tread:	59 to 78.7 inches 149 to 199 cm
