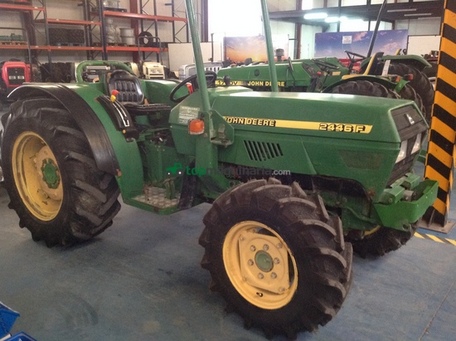

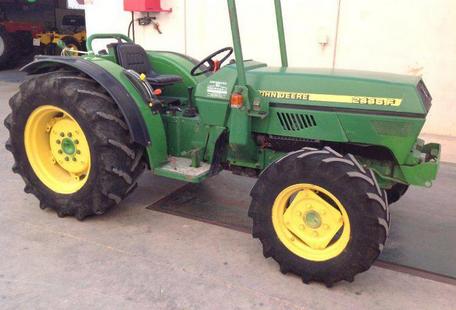

Deere 2446F

Production: 1996 - 2003

Production
Distributor:	John Deere
Manufacturer:	Goldini
Type:	Orchard/Vineyard tractor
Factory:	Italy
The John Deere 2446F is the same as the Goldoni Star 75.

John Deere 2446F Power
Engine:	70 hp 52.2 kW
PTO (claimed):	68 hp 50.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	electro-hydraulic rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post mid-mount folding ROPS.
Transmissions:	16-speed synchronized
8-speed

Hydraulics
Type:	open center
Pressure:	2611 psi 180.0 bar
Pump flow:	8.7 gpm 32.9 lpm
13.2 gpm 50.0 lpm *Optional

Tractor hitch
Rear Type:	II/I
Rear lift (at ends):	4740 lbs 2150 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	55
Battery volts:	12

Engine Detail
John Deere 3029
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	179 ci 2.9 L
Bore/Stroke:	4.19x4.33 inches 106 x 110 mm
Power:	70 hp 52.2 kW
Fuel system:	direct injection
Air cleaner:	dry
Compression:	17.8:1
Rated RPM:	2300
Torque:	182.9 lb-ft 248.0 Nm
Torque RPM:	1300
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	75.4 inches 191 cm
Length:	130.3 inches 330 cm
Height (steering wheel):	54.3 inches 137 cm
Height (ROPS):	85.2 inches 216 cm
Weight:	4960 lbs 2249 kg
Max weight:	7275 lbs 3299 kg
