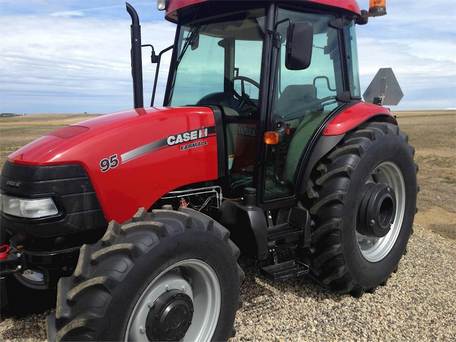

Case IH Farmall 95N

Production: 2009 - 2016

Production
Manufacturer:	Case IH
Type:	Orchard/Vineyard tractor
Original price:	$50,336 (2014 ROPS )

Case IH Farmall 95N Power
Engine (gross):	95 hp 70.8 kW
PTO (claimed):	82 hp 61.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	inboard planetary
Differential lock:	electro-hydraulic
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Two-post foldable mid ROPS. Cab optional with air-conditioning.
Transmissions:	16-speed mechanical shuttle
16-speed power shuttle
32-speed power shuttle

Hydraulics
Type:	open center
Rear valves:	2 or 3
Pump flow:	12.7 gpm 48.1 lpm
16.9 gpm 64.0 lpm (optional)
Total flow:	26.4 gpm 99.9 lpm
Steering flow:	9.2 gpm 34.8 lpm

Tractor hitch
Rear Type:	II
Control:	lower link draft sensing
Rear lift (at 24"/610mm):	4400 lbs 1995 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic dry disc
Rear RPM:	540
540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Battery CCA:	800
Battery volts:	12

Engine Detail
FPT
turbocharged intercooled diesel
4-cylinder
liquid-cooled
Displacement:	274 ci 4.5 L
Bore/Stroke:	4.095x5.20 inches 104 x 132 mm
Emissions:	Tier III
Power (gross):	95 hp 70.8 kW
Fuel system:	mechanical direct injection
Rated RPM:	2300
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	85.6 inches 217 cm
Length:	158 inches 401 cm
Width:	53.4 inches 135 cm (min)
Weight:	5820 lbs 2639 kg (ROPS)
6107 lbs 2770 kg (Cab)
Ground clearance:	10.5 inches 26 cm
Rear axle:	Flange
