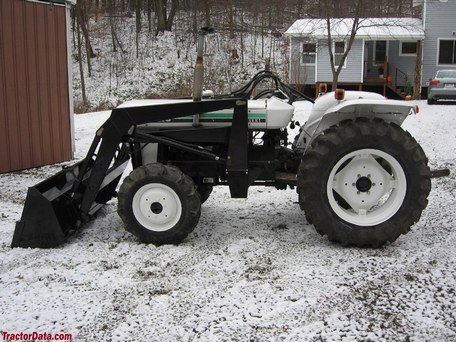

Bolens G294

Production: 1981 - 1985

Production
Distributor:	Bolens
Manufacturer:	Iseki
Type:	Compact Utility tractor

Variants

2WD

4WD

Bolens G294 Power
Engine:	29 hp 21.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical standard
Steering:	power
Brakes:	mechanical shoe
Cab:	Open operator station. Two-post ROPS (#17370) optional with optional canopy.
Transmission:	8-speed

Hydraulics
Type:	open center
Pressure:	2130 psi 146.9 bar
Pump flow:	7.7 gpm 29.1 lpm

Tractor hitch
Rear Type:	1
Control:	position and draft control

Power Take-off (PTO)
Rear PTO:	live (two-stage clutch)
Rear RPM:	540/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Isuzu
diesel
3-cylinder
liquid-cooled
Displacement:	89.3 ci 1.5 L
Power:	29 hp 21.6 kW
Pre-heating:	glow plugs
Rated RPM:	2600
Torque:	63.5 lb-ft 86.1 Nm
Torque RPM:	1800
Starter:	electric
Starter volts:	12

Transmission
Gears:	8 forward and 2 reverse
Clutch:	dual-stage dry disc

Dimensions
Wheelbase:	70 inches 177 cm
Length:	122 inches 309 cm
Width:	59 inches 149 cm
Height:	79 inches 200 cm
Weight:	2,948 lbs 1337 kg
Ground clearance:	12.6 inches 32 cm
Front tread:	44 inches 111 cm
Rear tread:	47 to 60 inches 119 to 152 cm
