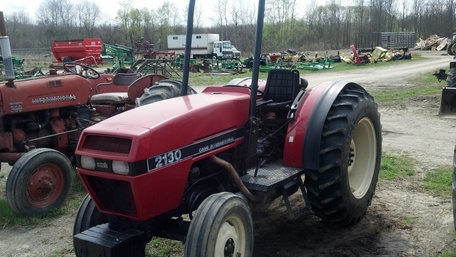

Case IH 2130

Production: 1988 - 1993

Production
Distributor:	Case IH
Manufacturer:	Carraro
Type:	Orchard/Vineyard tractor

Variants
2130V:	vineyard
2130E:	narrow

Case IH 2130 Power
PTO (claimed):	47 hp 35.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Trailer brakes:	hydraulic*Optional.
Cab:	Two-post forward-folding ROPS. Cab optional.
Transmissions:	8-speed partially synchronized
12-speed partially synchronized

Hydraulics
Type:	open center
Valves:	1 or 2
Pump flow:	15.6 gpm 59.0 lpm

Tractor hitch
Rear Type:	I/II
Control:	position and draft control
2130V Rear lift (at ends):	5575 lbs 2528 kg
2130E Rear lift (at ends):	5463 lbs 2478 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750/1000 (1.375)
Engine RPM:	540@2115 1000@2105 750@2015

2130 Serial Numbers
Location:	Serial number plate on the right side of tractor's console.

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	55
Battery volts:	12
Battery AH:	100

Engine Detail
SLH 100.3.A
diesel
3-cylinder
air-cooled
Displacement:	183.1 ci 3.0 L
Bore/Stroke:	4.134x4.547 inches 105 x 115 mm
Air cleaner:	dual dry element
Compression:	17:1
Rated RPM:	2350
Torque:	141.6 lb-ft 192.0 Nm
Torque RPM:	1350
Firing order:	1-3-2
Starter:	electric
Starter volts:	12
Oil capacity:	7.1 qts 6.7 L
Intake valve clearance:	0.008 inches 0.203 mm *Cold.
Exhaust valve clearance:	0.008 inches 0.203 mm *Cold.

Dimensions
2WD Wheelbase:	78 inches 198 cm
4WD Wheelbase:	76.6 inches 194 cm
2130V Length:	132.3 inches 336 cm
2130E Length:	132.9 inches 337 cm
2130V Width:	47.8 inches 121 cm
2130E Width:	53.7 inches 136 cm
Height (hood):	52.1 inches 132 cm
Height (ROPS):	92.7 inches 235 cm
2WD Ground clearance:	13.6 inches 34 cm
4WD Ground clearance:	9.9 inches 25 cm
