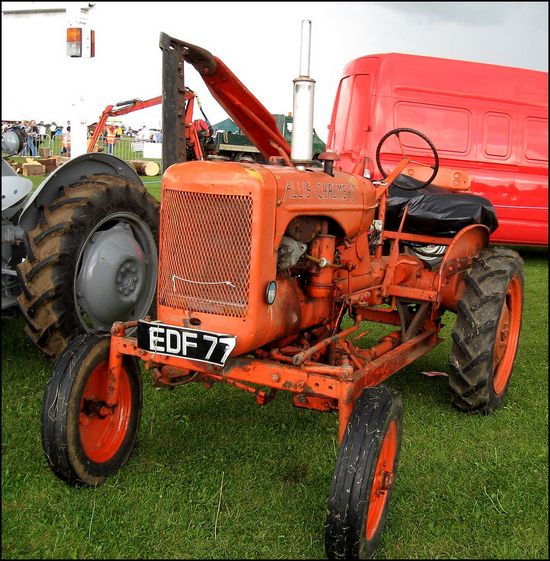

Allis Chalmers D272
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Allis Chalmers |
| Type: | Utility tractor |
| Factory: | Essendine, Lincolnshire, England |
Allis Chalmers D272 Power | |
| Engine: | 27.5 hp 20.5 kW |
| Drawbar (claimed): | 15 hp 11.2 kW |
| Belt (claimed): | 19 hp 14.2 kW |
| Plows: | 1 (16-inch) |
Mechanical | |
| Chassis: | 4x2 2WD |
| Cab: | Open operator station. |
| Transmission: | 3-speed sliding gear |
Power Take-off (PTO) | |
| Rear PTO: | transmission |
| Rear RPM: | 560 |
Engine Detail | |
| Allis-Chalmers | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 125.2 ci 2.1 L |
| Bore/Stroke: | 3.375x3.50 inches 86 x 89 mm |
| Compression: | 5.75:1 |
| Rated RPM: | 1650 |
| Firing order: | 1-2-4-3 |
| Oil capacity: | 4 qts 3.8 L |
| Coolant capacity: | 8 qts 7.6 L |
Transmission | |
| Type: | sliding gear |
| Gears: | 3 forward and 1 reverse |
Dimensions | |
| Wheelbase: | 74 inches 187 cm |
| Length: | 110 inches 279 cm |
| Height: | 63 inches 160 cm |
| Weight: | 2,060 lbs 934 kg |
