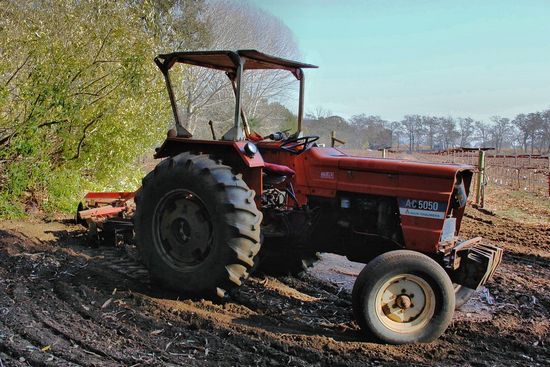

Allis Chalmers 5050
Type: Utility Tractors
Contents:
Production | |
| Distributor: | Allis Chalmers |
| Manufacturer: | Fiat |
| Type: | Utility tractor |
| Original price: | $20,720 |
Allis Chalmers 5050 Power | |
| PTO (claimed): | 50 hp 37.3 kW |
| Drawbar (tested): | 43.29 hp 32.3 kW |
| PTO (tested): | 51.46 hp 38.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power assist |
| Brakes: | differential mechanical contracting band |
| Cab: | Open operator station. Optional ROPS and canopy. |
| Transmissions: | 8-speed partially synchronized |
| 12-speed partially synchronized | |
Capacity | |
| Fuel: | 14.25 gal 53.9 L |
| Hydraulic system: | 4.75 gal 18.0 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 4.75 gal 18.0 L |
| Valves: | 1 |
| Pump flow: | 6.47 gpm 24.5 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Rear lift: | 3200 lbs 1451 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
5050 Serial Numbers | |
| Location: | Serial number plate below the steering wheel |
| 1977: | 573461 |
| 1978: | 579632 |
| 1979: | 584000 |
| 1980: | 591000 |
| 1981: | 596014 |
| 1982: | 597730 |
| 1983: | 599191 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 37 |
| Battery volts: | 12 |
Engine Detail | |
| Fiat | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 167.8 ci 2.8 L |
| Bore/Stroke: | 4.055x4.330 inches 103 x 110 mm |
| Fuel use: | 3.504 gal/hour 13.3 l/hour |
| Air cleaner: | paper element |
| Compression: | 17.1:1 |
| Rated RPM: | 2700 |
| Starter volts: | 12 |
| Oil capacity: | 8.1 qts 7.7 L |
| Coolant capacity: | 14.25 qts 13.5 L |
| Intake valve clearance: | 0.018 inches 0.457 mm (cold) |
| 0.014 inches 0.356 mm (hot) | |
| Exhaust valve clearance: | 0.018 inches 0.457 mm (cold) |
| 0.014 inches 0.356 mm (hot) | |
Dimensions | |
| 2WD Wheelbase: | 75.6 inches 192 cm |
| 4WD Wheelbase: | 76.7 inches 194 cm |
| 2WD Length: | 119.3 inches 303 cm |
| 4WD Length: | 124.7 inches 316 cm |
| Width: | 67 inches 170 cm |
| 2WD Ground clearance: | 20 inches 50 cm |
| 4WD Ground clearance: | 12.5 inches 31 cm |
| 2WD Front tread: | 53.2 to 77.2 inches 135 to 196 cm |
| 4WD Front tread: | 55 to 59 inches 139 to 149 cm |
| Rear tread: | 56 to 79 inches 142 to 200 cm |
