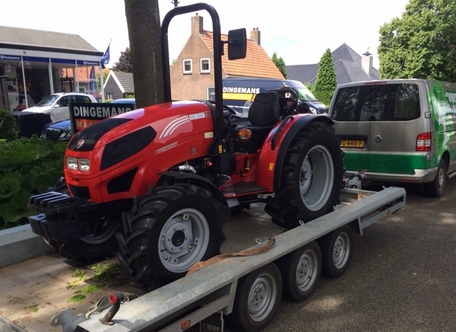

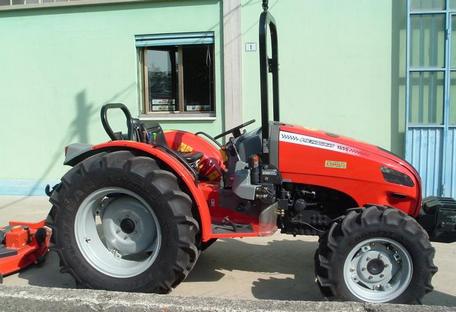

Valpadana 1555

Production
Manufacturer:	Valpadana
Factory:	San Martino, Italy

Valpadana 1555 Power
Engine:	54.2 hp 40.4 kW
PTO (claimed):	50 hp 37.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	Wet disc
Cab:	cab with heat and air conditining optional
Transmission:	16-speed

Hydraulics
Pressure:	1595 psi 110.0 bar
Valves:	2 rear standard
3 rear + 1 front optional
Pump flow:	7.4 gpm 28.0 lpm
Total flow:	12.6 gpm 47.7 lpm
Steering flow:	5.2 gpm 19.7 lpm

Tractor hitch
Rear Type:	I
Rear lift:	2,646 lbs 1200 kg
Front Hitch:	IN optional
Front lift:	881.8 lbs 399 kg

Power Take-off (PTO)
Rear RPM:	540/750
Front PTO:	optional
Front RPM:	1000

Engine Detail
4TNV84T-KLAN
turbo diesel
4-cylinder
liquid-cooled
Displacement:	121.7 ci 2.0 L
Bore/Stroke:	3.307x3.543 inches 84 x 90 mm
Power:	54.2 hp 40.4 kW
Air cleaner:	dry
Rated RPM:	2800
Torque:	121 lb-ft 164.1 Nm
Torque RPM:	1680

Transmission
Transmission:	shuttle/creeper
Gears:	16 forward and reverse

Dimensions
Wheelbase:	69.3 inches 176 cm
Length:	132.3 inches 336 cm
Width:	54.5 inches 138 cm
Height:	84.3 inches 214 cm
Weight:	3,594 lbs 1630 kg
Ground clearance:	14.6 inches 37 cm
