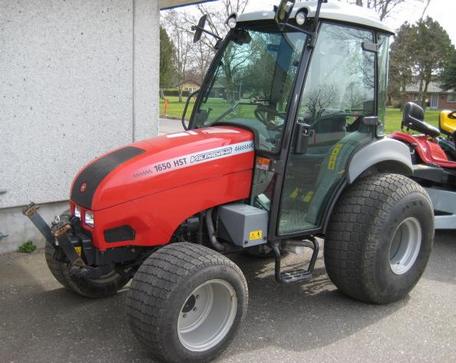

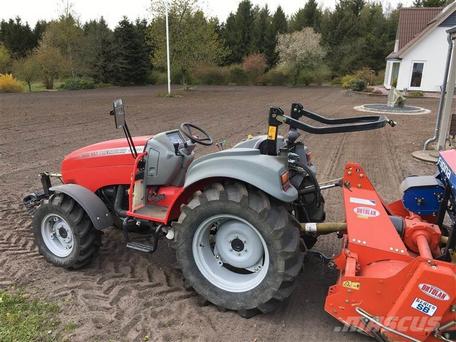

Valpadana 1650

Production
Manufacturer:	Valpadana
Factory:	San Martino, Italy

Valpadana 1650 Power
Engine:	49.5 hp 36.9 kW
PTO (claimed):	45.5 hp 33.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	Wet disc
Cab:	cab with heat and air conditining optional
Transmissions:	12-speed
16-speed

Hydraulics
Valves:	3 rear
1 front optional
Pump flow:	7.4 gpm 28.0 lpm
Total flow:	12.6 gpm 47.7 lpm
Steering flow:	5.2 gpm 19.7 lpm

Tractor hitch
Rear Type:	I
Rear lift:	2,646 lbs 1200 kg
Front Hitch:	I optional
Front lift:	881.8 lbs 399 kg

Power Take-off (PTO)
Rear RPM:	540/750/ground
Mid PTO:	optional
Mid RPM:	2000
Front PTO:	optional
Front RPM:	1000

Engine Detail
4TNE88-ELAN
diesel
4-cylinder
liquid-cooled
Displacement:	133.6 ci 2.2 L
Bore/Stroke:	3.465x3.543 inches 88 x 90 mm
Power:	49.5 hp 36.9 kW
Air cleaner:	dry
Rated RPM:	2800
Torque:	102.2 lb-ft 138.6 Nm
Torque RPM:	1600

Dimensions
Wheelbase:	71.65 inches 181 cm
Length:	134.6 inches 341 cm
Width:	54.53 inches 138 cm
Height:	93.31 inches 237 cm
Weight:	3,483 lbs 1579 kg
Ground clearance:	15.94 inches 40 cm
