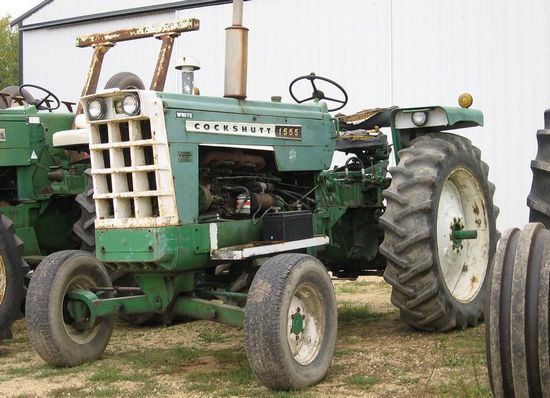

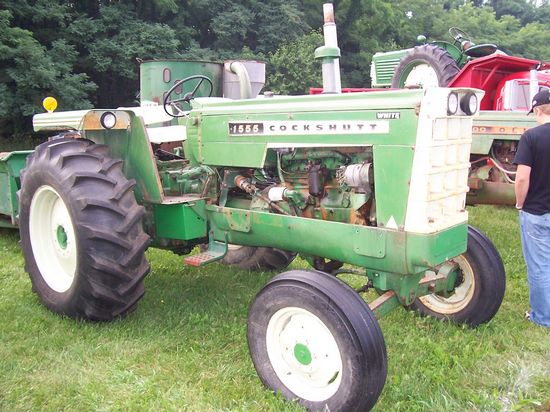

Cockshutt 1555

Production: 1970 - 1975

Production
Manufacturer:	Cockshutt
Type:	Row-Crop tractor
Original price:	$6,500 (1975 )

Cockshutt 1555 Power
PTO (claimed):	53 hp 39.5 kW
Drawbar (tested):	45.7 hp 34.1 kW
PTO (tested):	53.50 hp 39.9 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	disc
Cab:	Open operator station. Cab optional with available heater.
Transmissions:	12-speed partial power shift
6-speed unsynchronized gear

Capacity
Fuel:	27.5 gal 104.1 L
Hydraulic system:	14 gal 53.0 L

Hydraulics
Type:	open center
Capacity:	14 gal 53.0 L
Valves:	2 to 4

Tractor hitch
Rear Type:	II/I
Control:	lower-link draft control

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
1000
540/1000

1555 Serial Numbers
Location:	Serial number plate below instrument panel.
1969:	218-128
1970:	221-295
1971:	225-914
1972:	232-089
1973:	236-883
1974:	244-937
1975:	256-165
Final:	262-877

Engine Detail
Waukesha-Oliver
diesel
6-cylinder
liquid-cooled
Displacement:	232 ci 3.8 L
Bore/Stroke:	3.625x3.75 inches 92 x 95 mm
Air cleaner:	dry
Compression:	165:1
Rated RPM:	2200
Starter volts:	12
Oil capacity:	6 qts 5.7 L
Coolant capacity:	20 qts 18.9 L

Dimensions
Wheelbase:	99 inches 251 cm
Length:	154.5 inches 392 cm
Width:	81.5 inches 207 cm *Minimum width
Height (steering wheel):	80 inches 203 cm
Height (exhaust):	97.625 inches 247 cm
Shiping weight:	6841 lbs 3103 kg
Ground clearance:	25.375 inches 64 cm
Front tread:	51.5 to 87.5 inches 130 to 222 cm
Rear tread:	56.5 to 89.5 inches 143 to 227 cm
