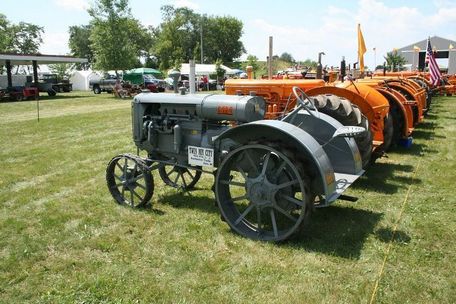

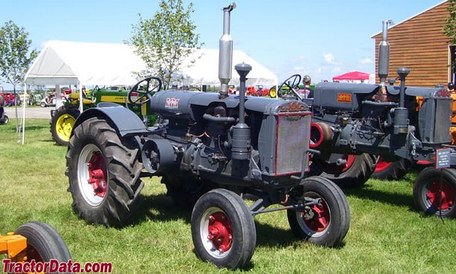

Twin City KTA
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | Twin City (a part of Minneapolis-Moline) |
| Type: | Standard-tread tractor |
| Factory: | Minneapolis, Minnesota, USA |
| Total built: | 4,552 |
Twin City KTA Power | |
| Drawbar (claimed): | 20 hp 14.9 kW |
| Belt (claimed): | 30 hp 22.4 kW |
| Drawbar (tested): | 24.8 hp 18.5 kW |
| Belt (tested): | 33.7 hp 25.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Cab: | Open operator station |
| Transmission: | 3-speed |
KTA Serial Numbers | |
| Location: | Serial number plate on the left side of the Minneapolis-Moline KTA. |
| 1934: | 302200 |
| 1935: | 302372 |
| 1936: | 303826 |
| 1937: | 304702 |
| 1938: | 306282 |
| Final: | 306751 |
Engine Detail | |
| Minneapolis KE | |
| distillate | |
| 4-cylinder 16-valve | |
| liquid-cooled vertical I-head | |
| Displacement: | 283.7 ci 4.6 L |
| Bore/Stroke: | 4.25x5.00 inches 108 x 127 mm |
| Rated RPM: | 1150 |
| Firing order: | 1-3-4-2 |
| Coolant capacity: | 24 qts 22.7 L |
Transmission | |
| Transmission: | gear |
| Gears: | 3 forward and 1 reverse |
Dimensions | |
| Length: | 131 inches 332 cm |
| Height: | 64.5 inches 163 cm |
| Weight: | 4,300 lbs 1950 kg |
