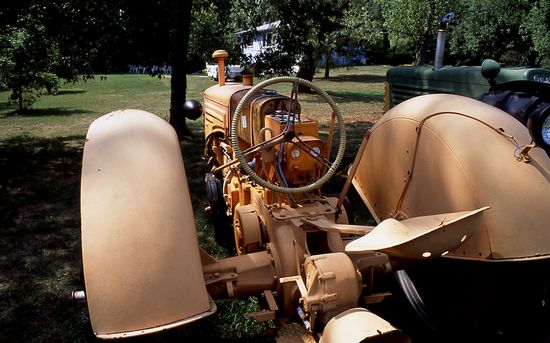

Minneapolis-Moline ZTU
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Minneapolis-Moline |
| Type: | Row-Crop tractor |
| Factory: | Minneapolis, Minnesota, USA |
| Original price: | $1,500 (1948) |
Variants | |
| tricycle front | |
| ZTN: | single front wheel |
| ZTE: | adjustable wide-front |
| standard front | |
| industrial | |
Minneapolis-Moline ZTU Power | |
| Drawbar (claimed): | 16.5 hp 12.3 kW |
| Belt (claimed): | 26.5 hp 19.8 kW |
| Drawbar (tested): | 26.39 hp 19.7 kW |
| Belt (tested): | 31.14 hp 23.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual worm-and-sector |
| Brakes: | drum |
| Cab: | Open operator station. |
| Transmission: | 5-speed unsynchronized gear |
Power Take-off (PTO) | |
| Rear RPM: | 540 (1.375) |
ZTU Serial Numbers | |
| 1936: | 560001 |
| 1937: | 560038 |
| 1938: | 562975 |
| 1939: | 565407 |
| 1940: | 567155 |
| 1941: | 568755 |
| 1942: | 570822 |
| 1943: | 571422 |
| 1944: | 572968 |
| 1945: | 575713 |
| 1946: | 576814 |
| 1947: | 578041 |
| 1948: | 581815 |
| Final: | 585817 |
Engine Detail | |
| Minneapolis-Moline RE | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 185.8 ci 3.0 L |
| Bore/Stroke: | 3.625x4.50 inches 92 x 114 mm |
| Air cleaner: | oil bath |
| Compression: | 5.75:1 |
| Rated RPM: | 1500 |
| Firing order: | 1-3-4-2 |
| Oil capacity: | 7 qts 6.6 L |
| Coolant capacity: | 14 qts 13.2 L |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 5 forward and 1 reverse |
| Clutch: | 10-inch dry disc |
| Oil capacity: | 28 qts 26.5 L |
Dimensions | |
| Wheelbase: | 82 inches 208 cm |
| Length: | 132 inches 335 cm |
| Width: | 79 inches 200 cm |
| Height: | 60 inches 152 cm |
| Weight: | 4,000 lbs 1814 kg |
| Clearance (rear axle): | 22.75 inches 57 cm |
| Front tread: | 7 inches 17 cm |
| Rear tread: | 54 to 84 inches 137 to 213 cm |
