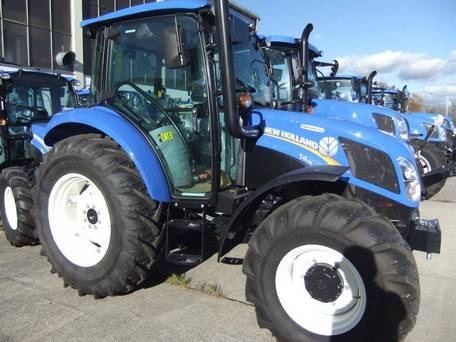

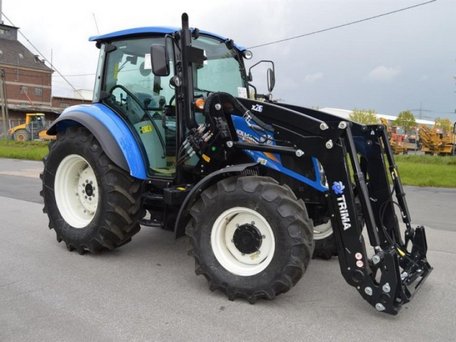

New Holland T4.55

Production: 2012

Production
Manufacturer:	New Holland
Type:	Utility tractor

New Holland T4.55 Power
Engine (gross):	55 hp 41.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	limited slip 4WD front axle
Steering:	hydrostatic power
Trailer brakes:	hydraulic optional
Cab:	Two-post foldable ROPS. Optional PowerStar cab with optional air-conditioning. EZ-Guide 250 and 500 capable.
Transmissions:	12-speed
20-speed

Hydraulics
Type:	fixed displacement
Rear valves:	3
Mid valves:	2
Pump flow:	12.55 gpm 47.5 lpm
Steering flow:	7.3 gpm 27.6 lpm
9.5 gpm 36.0 lpm (power shuttle)

Tractor hitch
Rear Type:	2/1
Control:	mechanical draft control
Rear lift (at ends):	4,883 lbs 2214 kg
Rear lift (at 24"/610mm):	3,664 lbs 1661 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
540E
ground
Engine RPM:	540@1958 540E@1592

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Charging volts:	12
Battery volts:	12
Battery AH:	100

Engine Detail
FPT F5C
turbocharged diesel
4-cylinder 8-valve
liquid-cooled
Displacement:	195 ci 3.2 L
Bore/Stroke:	3.898x4.094 inches 99 x 104 mm
Emissions:	Tier 3
Rated Power (ECE R120):	55 hp 41.0 kW
Rated RPM:	2300
Torque:	177 lb-ft 240.0 Nm
Torque RPM:	1200
Starter:	electric
Starter volts:	12
Oil change:	500 h

Dimensions
2WD Wheelbase:	84.7 inches 215 cm
4WD Wheelbase:	82.8 inches 210 cm
Length:	149.3 inches 379 cm
Width:	70.6 inches 179 cm
Height (cab):	94.3 inches 239 cm
Ground clearance:	13.1 inches 33 cm
Rear tread:	55.6 to 75.7 inches 141 to 192 cm
