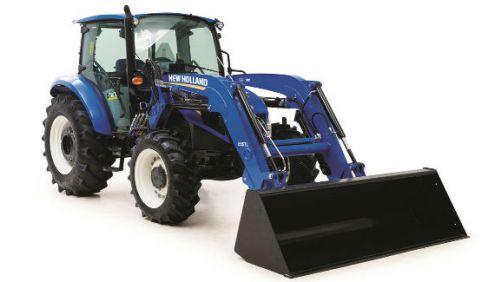

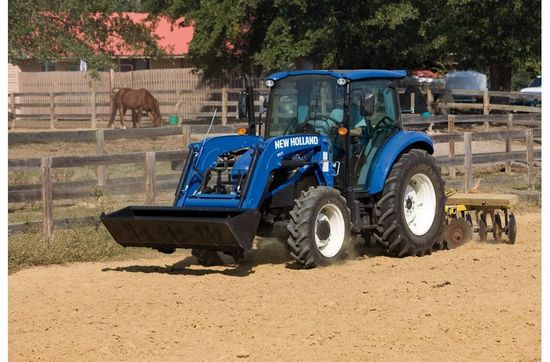

New Holland PowerStar 65

Production: 2018

Production
Manufacturer:	New Holland
Type:	Utility tractor

New Holland PowerStar 65 Power
Engine (gross):	64 hp 47.7 kW
PTO (claimed):	50 hp 37.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	inboard planetary
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS. Cab optional.
Transmission:	12-speed Four synchronized gears in three ranges with power shuttle.

Hydraulics
Type:	open center
Valves:	1 to 3
Pump flow:	12.5 gpm 47.3 lpm
Total flow:	22 gpm 83.3 lpm
Steering flow:	9.5 gpm 36.0 lpm

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	3664 lbs 1661 kg

Power Take-off (PTO)
Rear RPM:	540
540/540E*Optional

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Battery volts:	12

Engine Detail
FPT F5D
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	206.7 ci 3.4 L
Bore/Stroke:	3.898x4.331 inches 99 x 110 mm
Emissions:	Tier IV
Emission control:	DOC and EGR
Power (gross):	64 hp 47.7 kW
Fuel system:	electronic high-pressure common rail direct injection
Starter:	electric
Starter volts:	12

Transmission
Type:	Four synchronized gears in three ranges with power shuttle.
Gears:	12 forward and reverse

Dimensions
Wheelbase:	83.9 inches 213 cm
Length:	151 inches 383 cm
Width:	75.6 inches 192 cm
Height (cab):	97.9 inches 248 cm
Weight:	6239 lbs 2830 kg
Rear axle:	Flange
