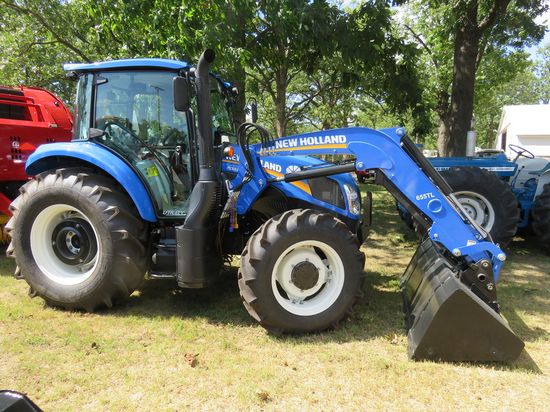

New Holland PowerStar 100
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | New Holland |
| Type: | Utility tractor |
| Original price: | $64,196 (2020 ROPS ) |
| Original price: | $75,318 ( Cab ) |
New Holland PowerStar 100 Power | |
| Engine (gross): | 99 hp 73.8 kW |
| PTO (claimed): | 85 hp 63.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD: 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Two-post folding ROPS. Cab optional. |
| Transmissions: | 12-speed Four synchronized gears in three ranges with power shuttle. |
| 12-speed mechanical shuttle | |
| 20-speed creeper | |
Hydraulics | |
| Type: | open center |
| Valves: | 2 or 3 |
| Pump flow: | 16.9 gpm 64.0 lpm |
| Total flow: | 26.6 gpm 100.7 lpm |
| Steering flow: | 9.7 gpm 36.7 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at 24"/610mm): | 5620 lbs 2549 kg |
| 9700 lbs 4399 kg *Optional | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540 |
| 540/1000*Optional | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| ROPS Charging amps: | 120 |
| Cab Charging amps: | 150 |
| Battery volts: | 12 |
Engine Detail | |
| FPT F5G | |
| turbocharged aftercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 206.7 ci 3.4 L |
| Bore/Stroke: | 3.898x4.331 inches 99 x 110 mm |
| Emissions: | Tier IV |
| Emission control: | DOC and EGR |
| Power (gross): | 99 hp 73.8 kW |
| Fuel system: | electronic high-pressure common rail direct injection |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| 2WD Wheelbase: | 92.2 inches 234 cm |
| 4WD Wheelbase: | 89.9 inches 228 cm |
| 2WD Length: | 163.1 inches 414 cm |
| 4WD Length: | 160.9 inches 408 cm |
| Width: | 75.7 inches 192 cm |
| Height (ROPS): | 106.5 inches 270 cm |
| Height (cab): | 102.1 inches 259 cm |
| Rear axle: | Flange |
| Front tread: | 56.6 to 76.6 inches 143 to 194 cm |
| Rear tread: | 55.5 to 76.2 inches 140 to 193 cm |
