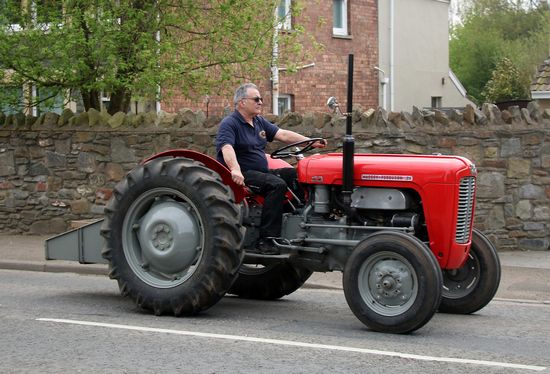

Massey Ferguson 35

Production: 1960 - 1964

Production
Manufacturer:	Massey Ferguson
Type:	Utility tractor
Factory:	Coventry, England
The British-built Massey Ferguson 35 was a continuation of the Ferguson FE-35. The evolution was a gradual process from 1957 to 1960 as colors and decals changed.

Variants

built in the USA

built in England

Massey Ferguson 35 Power
Engine:	37 hp 27.6 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	differential shoe
Cab:	Open operator station.
Transmission:	6-speed unsynchronized gear

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear PTO:	transmission (special)
live (deluxe)
Rear RPM:	540

35 Serial Numbers
Location:	Serial number plate on dashboard.
1960:	171471
1961:	220614
1962:	267528
1963:	307231
1964:	352255
Final:	388382

Engine Detail
Perkins 3.152
diesel
3-cylinder
liquid-cooled
Displacement:	152.7 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Power:	37 hp 27.6 kW
Compression:	17.4:1
Rated RPM:	2000
Firing order:	1-2-3
Starter volts:	12

Transmission
Type:	unsynchronized gear
Gears:	6 forward and 2 reverse

Dimensions
Operating weight:	3093 lbs 1402 kg
