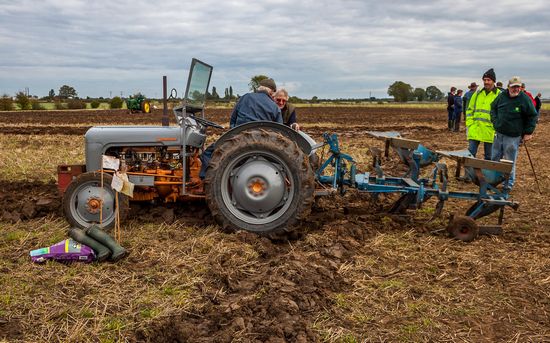

Ferguson FE-35
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Ferguson (a part of Massey Ferguson) |
| Type: | Utility tractor |
| Factory: | Coventry, England |
| The Ferguson FE-35 was in production as the Ferguson and Massey-Harris companies merged into Massey Ferguson. The tractor began production in grey-and-gold paint with Ferguson badging. The paint changed to red and grey in late 1957 but the Ferguson decals remained. At some point between 1958 and 1960 the Ferguson name disappeared in favor of Massey Ferguson. | |
Ferguson FE-35 Power | |
| Engine: | 34 hp 25.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | differential shoe |
| Cab: | Open operator station. |
| Transmission: | 6-speed unsynchronized gear |
Tractor hitch | |
| Rear Type: | I |
Power Take-off (PTO) | |
| Rear PTO: | transmission (special) |
| live (deluxe) | |
| Rear RPM: | 540 |
FE-35 Serial Numbers | |
| Location: | Serial number plate on dashboard. |
| 1956: | 1001 |
| 1957: | 9226 |
| 1958: | 79553 |
| 1959: | 125068 |
| 1960: | 171471 |
| Final: | 220613 |
Engine Detail | |
| Standard | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 133.5 ci 2.2 L |
| Bore/Stroke: | 3.425x3.622 inches 87 x 92 mm |
| Starter volts: | 6 |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 6 forward and 2 reverse |
Dimensions | |
| Operating weight: | 3093 lbs 1402 kg |
