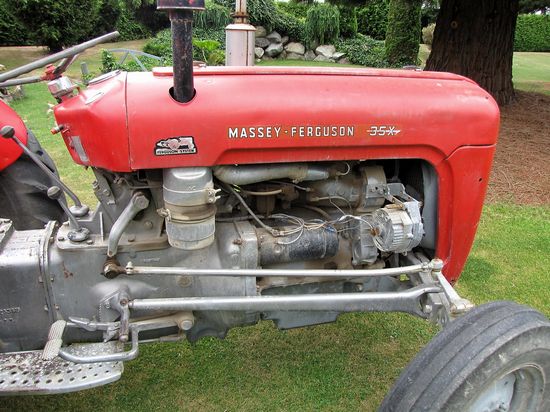

Massey Ferguson 35X

Production: 1962 - 1964

Production
Manufacturer:	Massey Ferguson
Type:	Utility tractor
Factory:	Coventry, England

Massey Ferguson 35X Power
Engine:	44.5 hp 33.2 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear*Optional
Steering:	manual
Brakes:	mechanical drum
Cab:	Open operator station.
Transmissions:	6-speed gear
12-speed partial power shift

Hydraulics
Type:	open center
Pressure:	2350 psi 162.0 bar
Pump flow:	3.7 gpm 14.0 lpm

Tractor hitch
Rear Type:	I
Rear lift:	2600 lbs 1179 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Engine RPM:	540@1500

35X Serial Numbers
Location:	Plate on instrument panel.
1962:	302413
1963:	307231
1964:	352255

Engine Detail
Perkins A3.152
diesel
3-cylinder
liquid-cooled
Displacement:	152.7 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Power:	44.5 hp 33.2 kW
Rated RPM:	2250
Starter volts:	12

Dimensions
Length:	115 inches 292 cm
Width:	64 inches 162 cm
Weight:	3265 lbs 1481 kg
