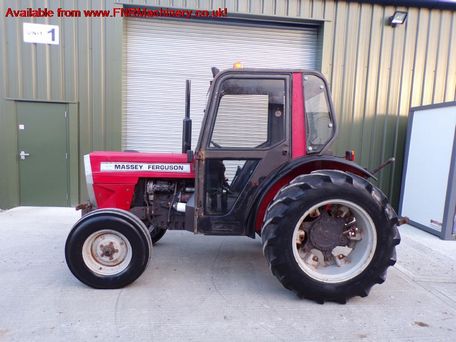

Massey Ferguson 184

Production: 1980 - 1983

Production
Distributor:	Massey Ferguson
Manufacturer:	Landini
Type:	Utility tractor
Factory:	Italy

Variants
184S:	vineyard

Massey Ferguson 184 Power
Engine:	68 hp 50.7 kW
PTO (claimed):	62 hp 46.2 kW
Drawbar (tested):	51.04 hp 38.1 kW
PTO (tested):	62.45 hp 46.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Steering:	hydrostatic power
Brakes:	dry disc
Cab:	Open operator station. Cab optional.
Transmission:	12-speed partially synchronized

Hydraulics
Type:	open center
Pump flow:	7.4 gpm 28.0 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift (at ends):	5070 lbs 2299 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/ground (1.375)
Engine RPM:	540@1944

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	235.8 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Power:	68 hp 50.7 kW
Fuel system:	direct injection
Rated RPM:	2200
Torque:	185.1 lb-ft 251.0 Nm
Torque RPM:	1300
Starter volts:	12

Transmission
Type:	partially synchronized
Gears:	12 forward and 4 reverse
Clutch:	280mm dry disc
Four gears in three ranges. Gears are synchronized.

Dimensions
Wheelbase:	85.8 inches 217 cm
Length:	148.0 inches 375 cm
Front tread:	60 inches 152 cm (4WD)
Rear tread:	59.1 to 78.7 inches 150 to 199 cm
