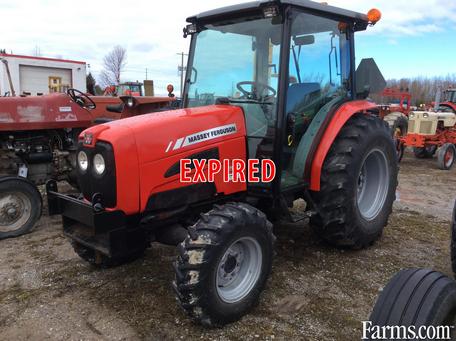

Massey Ferguson 1560

Production: 2005 - 2008

Production
Distributor:	Massey Ferguson
Manufacturer:	Iseki
Type:	Compact Utility tractor
Factory:	Matsuyama, Japan

Massey Ferguson 1560 Power
Engine (gross):	59.1 hp 44.1 kW
PTO (claimed):	46.4 hp 34.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmission:	12-speed

Capacity
Fuel:	13.2 gal 50.0 L
Front axle:	9 qts 8.5 L

Hydraulics
Type:	open center
Valves:	2*Optional
Pump flow:	12.8 gpm 48.4 lpm
Total flow:	19.6 gpm 74.2 lpm
Steering flow:	6.8 gpm 25.7 lpm

Tractor hitch
Rear Type:	I/II
Rear lift (at ends):	3,748 lbs 1700 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Iseki E4DE
diesel
4-cylinder
liquid-cooled
Displacement:	180 ci 3.0 L
Bore/Stroke:	3.82x3.94 inches 97 x 100 mm
Power (gross):	59.1 hp 44.1 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12
Oil capacity:	8.5 qts 8.0 L
Coolant capacity:	8 qts 7.6 L

Transmission
Transmission:	PowerShuttle
Gears:	12 forward and reverse
Oil capacity:	45.4 qts 43.0 L

Dimensions
Wheelbase:	79 inches 200 cm
Length:	134.6 inches 341 cm
Width:	69.7 inches 177 cm
Height:	91.7 inches 232 cm
Ground clearance:	15.7 inches 39 cm
Front tread:	52.8 inches 134 cm
Rear tread:	52.2 inches 132 cm
