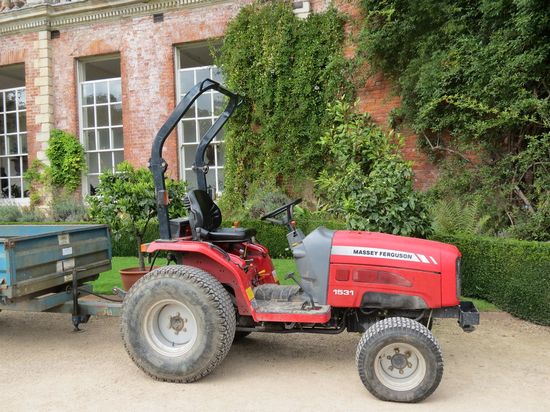

Massey Ferguson 1531

Production: 2005 - 2010

Production
Distributor:	Massey Ferguson
Manufacturer:	Iseki
Type:	Compact Utility tractor
Factory:	Matsuyama, Japan
Original price:	$15,716 (2009 )

Massey Ferguson 1531 Power
Engine (gross):	33 hp 24.6 kW
Engine (net):	32 hp 23.9 kW
PTO (claimed):	24.5 hp 18.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	hydrostatic

Capacity
Fuel:	7.9 gal 29.9 L
Front axle:	4.7 qts 4.4 L

Hydraulics
Type:	open center
Valves:	2*Optional
Pump flow:	7.7 gpm 29.1 lpm
Total flow:	10.4 gpm 39.4 lpm
Steering flow:	2.7 gpm 10.2 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2425 lbs 1099 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540 (1.375)
Mid PTO:	independent
Clutch:	electro-hydraulic
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Battery CCA:	582
Battery volts:	12

Engine Detail
Iseki
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Bore/Stroke:	3.43x3.31 inches 87 x 84 mm
Power (gross):	33 hp 24.6 kW
Pre-heating:	glow plugs
Rated RPM:	2600
Starter:	electric
Starter volts:	12
Oil capacity:	3.8 qts 3.6 L
Coolant capacity:	5.8 qts 5.5 L

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse
Oil capacity:	30.6 qts 29.0 L

Dimensions
Wheelbase:	65.6 inches 166 cm
Length:	112.4 inches 285 cm
Width:	53.5 inches 135 cm
Height:	80.7 inches 204 cm
Ground clearance:	10 inches 25 cm
Front tread:	39.6 inches 100 cm
Rear tread:	37.6 inches 95 cm
